SURTEC NTWP20 2"

SURTEC NTWP20 2"

Gasoline Water Pump with 30m³/h Flow, Reliable Supplier

Highlights:

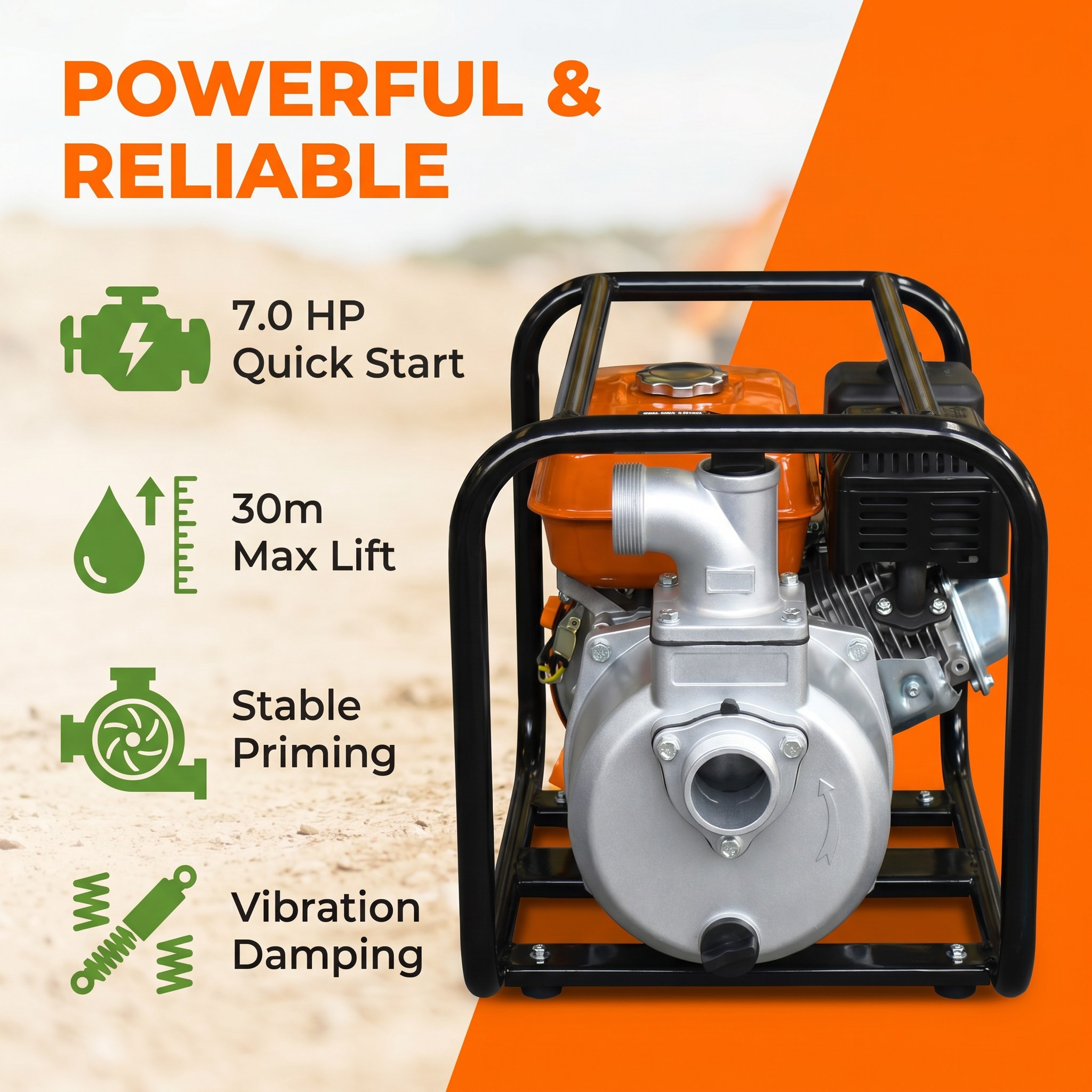

  • 30 m max lift paired with 30 m³/h flow
  • Cast-iron impeller & aluminum pump body for long service life
  • SURTEC 7.0 hp engine ensures quick, effortless startup
  • Drop-forged steel crankshaft and camshaft for higher strength
  • Patented cylinder structure boosts heat efficiency & reduces fuel loss

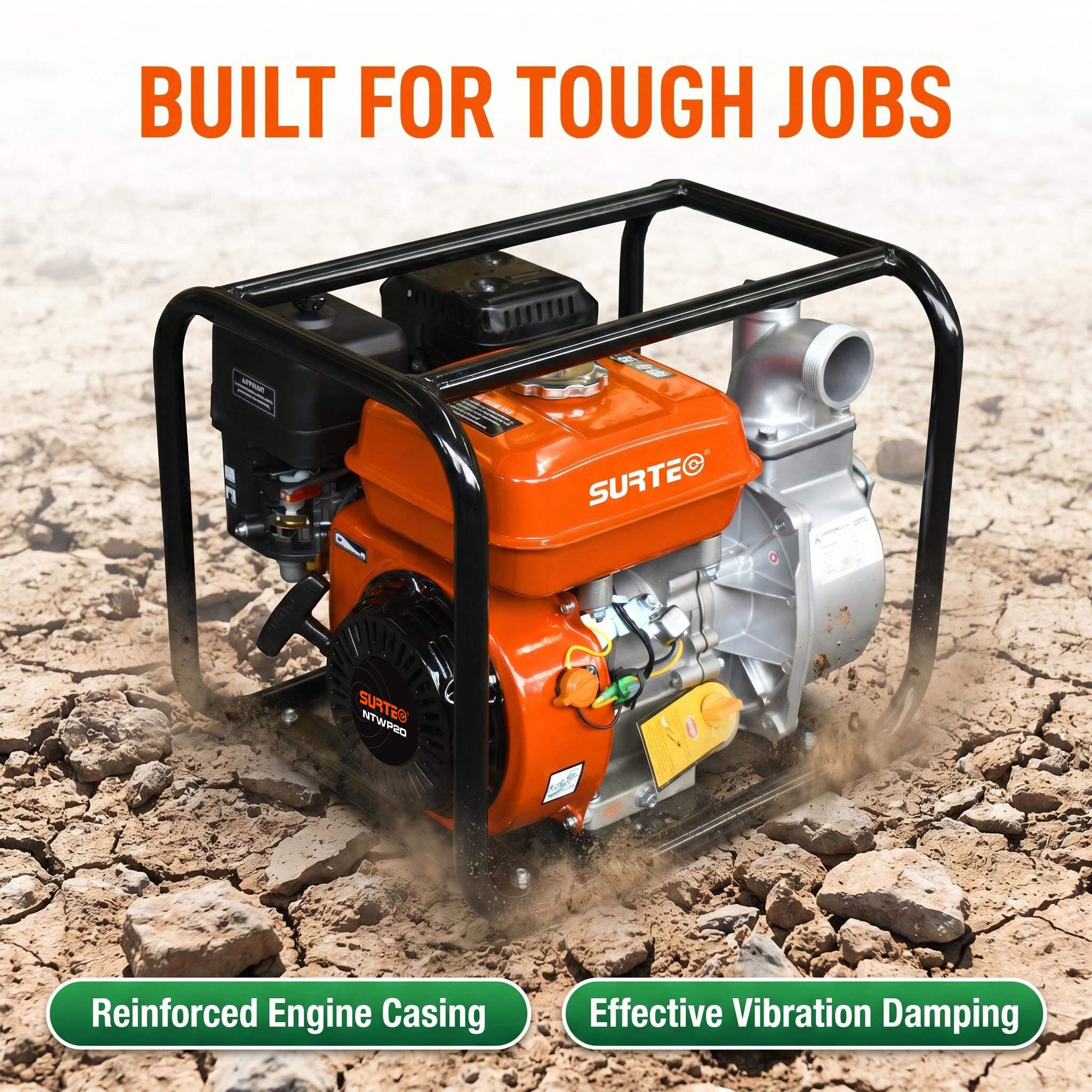

  • Reinforced engine casing enhances resistance to impact & vibration
Request A Quote
Certification 1
Certification 2
Certification 3
Certification 4
Certification 5
Certification 6
Certification 7

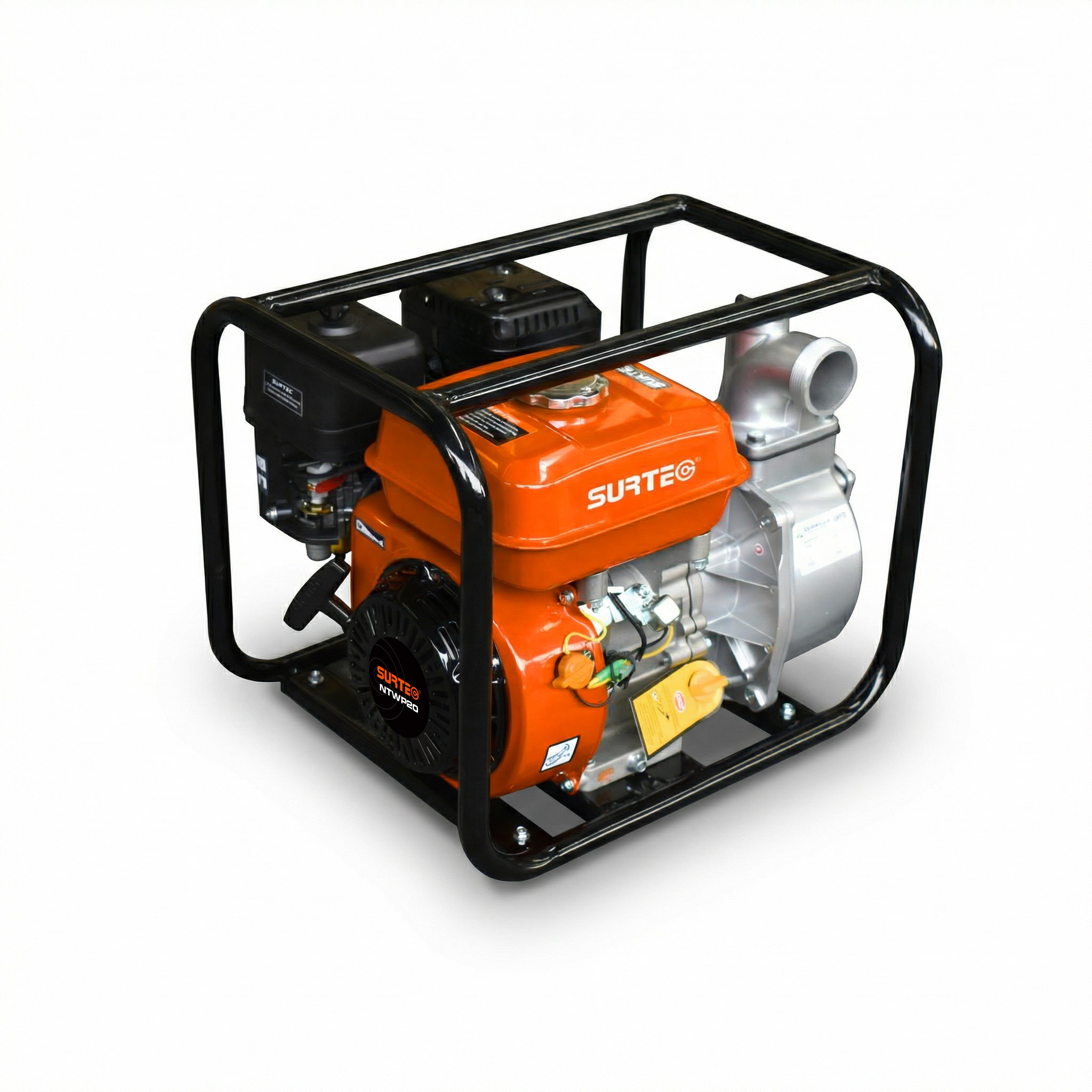

The SURTEC NTWP20 is a gasoline water pump that pairs a precision-machined self-priming pump end with a 170F OHV engine — a commercial water pump built for dependable water transfer wherever the work happens. With 30 m³/h of maximum flow and 30 meters of lift, it covers the core duties of farm, site and home without overspending on capacity, and its manual starter delivers quick, effortless pull-up even after days of standing idle.

The engine underneath is a single-cylinder, air-cooled, four-stroke OHV unit displacing 212cc, rated at a maximum output of 7.0hp with 13.5N·m of peak torque. A 70x55mm bore and stroke and an 8.5:1 compression ratio give it easy cold starts and smooth running, while drop-forged steel crankshaft and camshaft components raise strength and long-term wear resistance. SURTEC's optimized cylinder structure improves combustion efficiency and lowers fuel usage — consumption holds at or below 395 g/kW·h — and the reinforced engine casing resists impact and vibration on rough ground. A 3.6L fuel tank keeps sessions long, with 0.6L oil capacity for simple servicing.

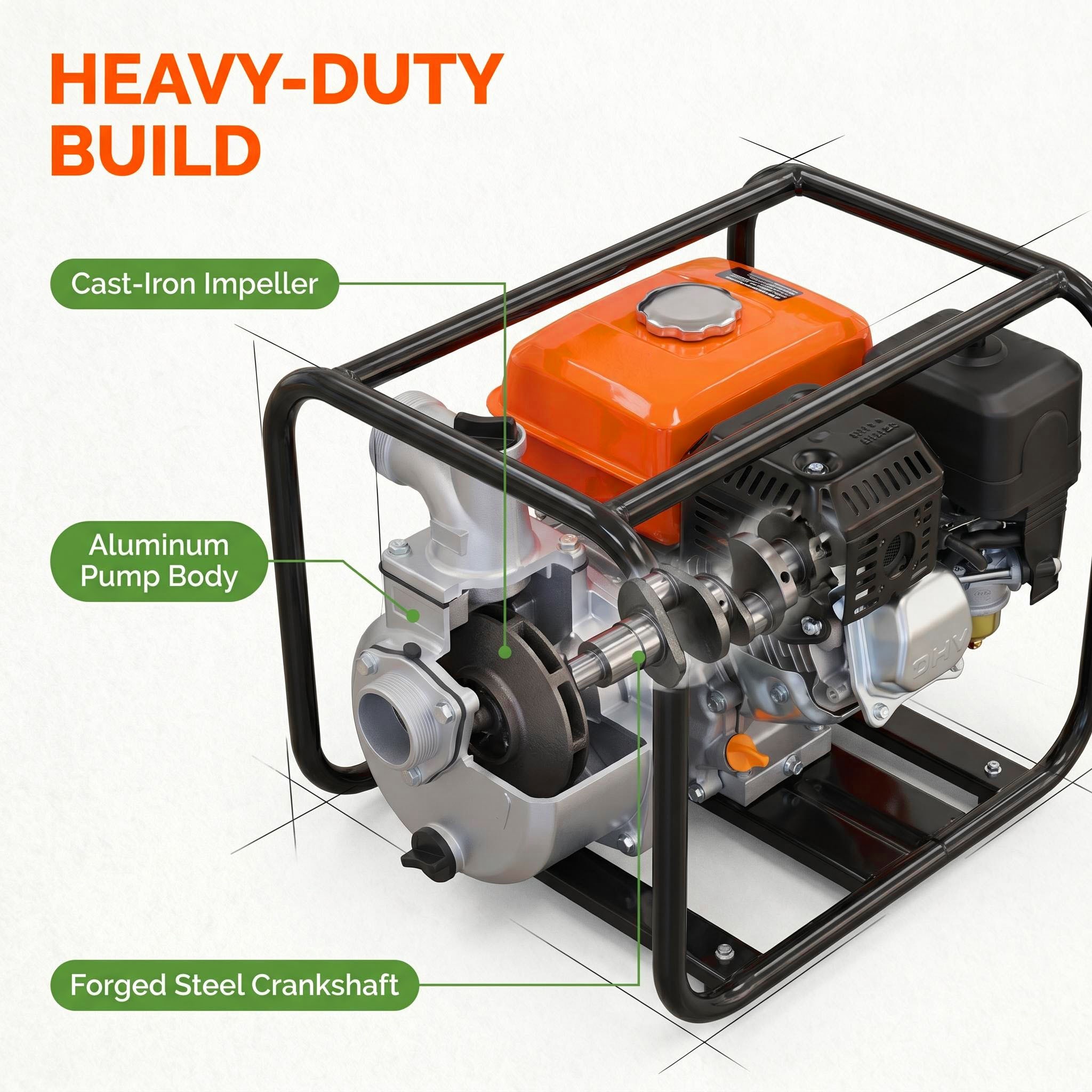

The hydraulic end matches the engine's reliability. The cast-iron impeller and aluminum pump body are built to strict machining standards, producing excellent lift, stable suction to 6 meters and a reliable 30-meter discharge head through 2-inch (50mm) inlet and outlet ports. As a true self-priming pump, the NTWP20 settles into steady flow quickly after start-up — no fiddly re-priming between moves, which matters when one day's work means several water sources.

Durability is verified, not claimed. The full-frame chassis integrates damping elements that absorb continuous vibration and protect the unit during long sessions, and every NTWP20 is tested for consistent operation above 500 hours. Rated for ambient temperatures from -5°C to 45°C, it starts and runs reliably from cool spring mornings to midsummer field work — a genuine four-season machine for water-transfer duty.

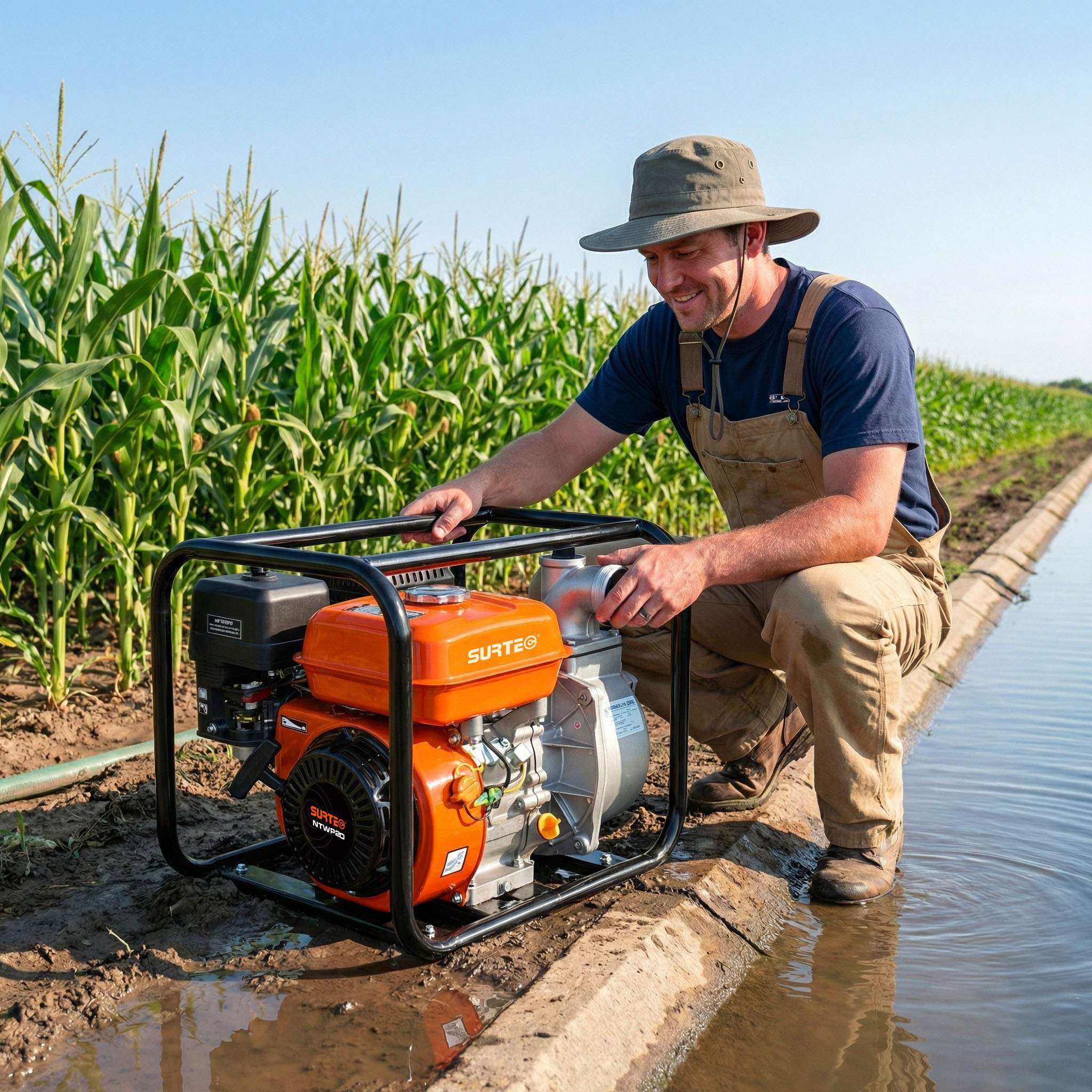

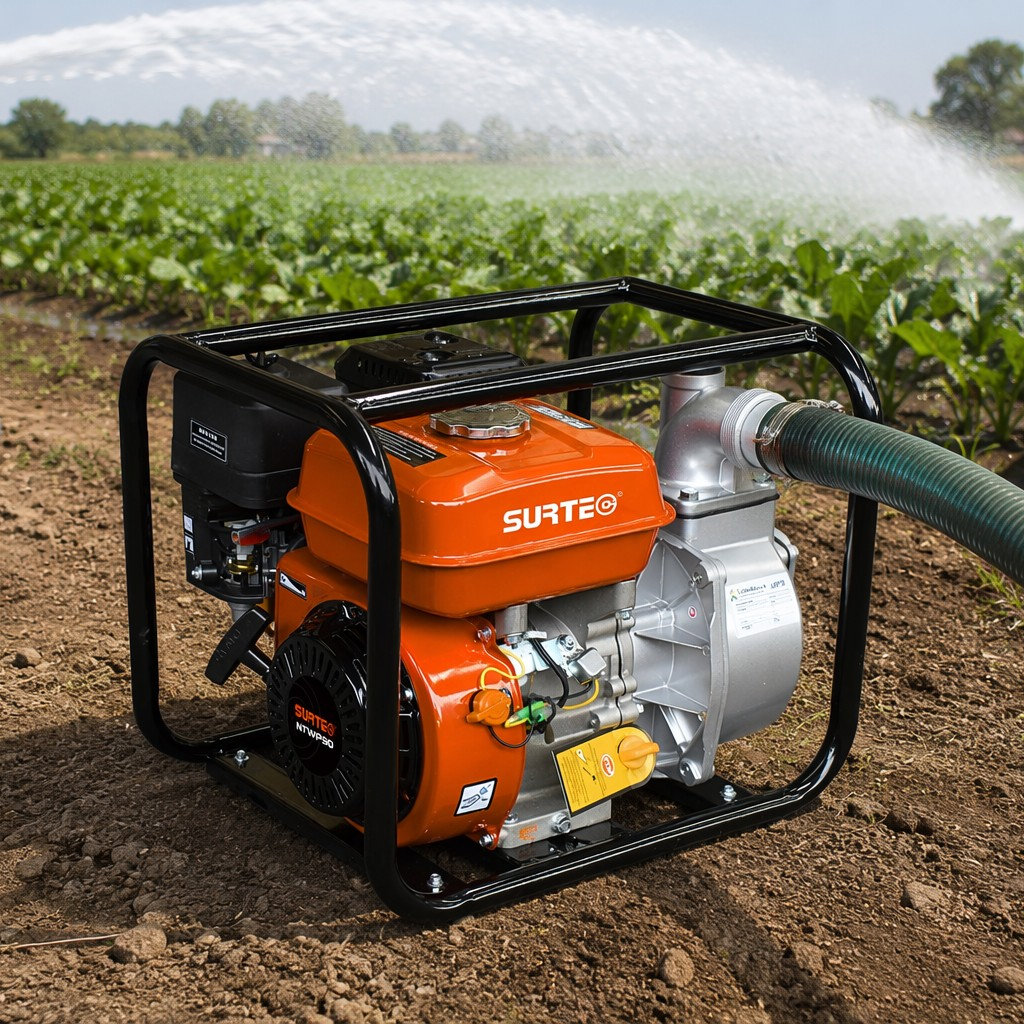

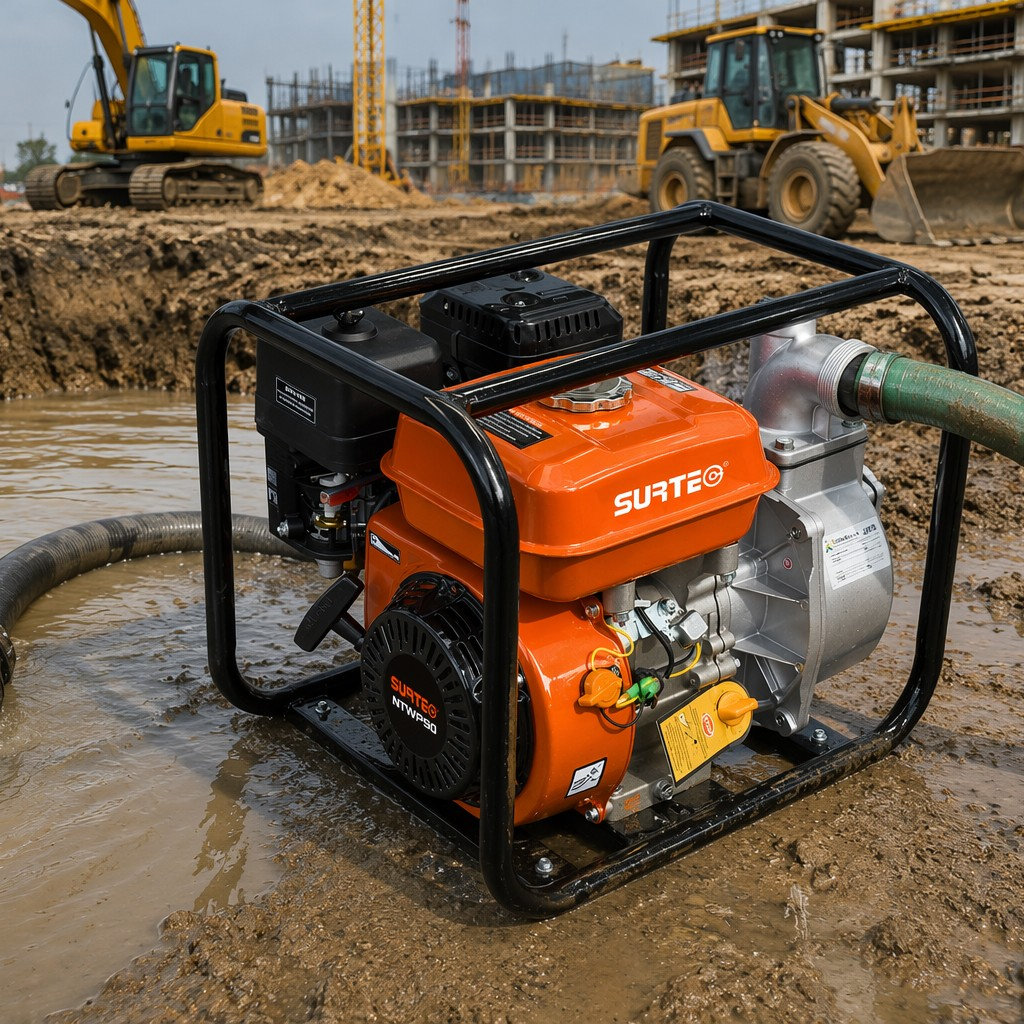

Applications span agricultural irrigation, emergency drainage, firefighting assistance, household water supply and marine-related pumping. For outdoor power equipment dealers, garden machinery suppliers and businesses seeking reliable gasoline water pump solutions, Surtec offers competitive water pressure pump prices, stable wholesale supply and full spare parts support through authorized distributors and dealers. Light enough for one person to move, tough enough for daily commercial use, the NTWP20 is the easy-sell 2-inch gasoline pump for Latin America, Africa, Eastern Europe and Southeast Asia.

Product Specifications

Inlet Size 50mm(2")
Outlet Size 50mm(2")
Max. flow 30m³/h
Lift Height 30m
Suction Lift 6m
Pump Type Self-priming pump
Material of Impeller Cast iron
Material of Pump body Aluminium
Engine Model 170F
Engine Type Single cylinder,Air cooling,4 stroke,OHV
Bore x Stroke(mm) 70x55
Compression Ratio 8.5:1
Max. Output 7.0hp
Max.Torque 13.5N.m
Displacement  212cc
Material of Crankshaft Drop-froging Steel
Material of Camshaft Drop-froging Steel
Fuel Consumption(g/kw.h) ≤395
Starting Type Manual
Fuel Tank Capacity  3.6L
Oil Capacity 0.6L

Our Hottest Machines

FAQ

Quick answers to help you learn more about our offerings, processes, and how we can support your project needs.

Yes, our water pumps are designed with self-priming capabilities for quick and easy operation.

For gasoline models, use standard unleaded gasoline. For diesel models, use high-quality diesel fuel.

Specific trash pump models are designed for muddy or debris-laden water; standard models are for clean water.

Most models provide a stable suction lift of up to 6-8 meters depending on the specific configuration.

We recommend an initial oil change after 20 hours of use, and then every 100 hours thereafter.

Yes, SURTEC provides a standard manufacturer warranty on all outdoor power equipment.
