SURTEC NTWP30 3"

SURTEC NTWP30 3"

Diesel Water Pump with 60m³/h Flow

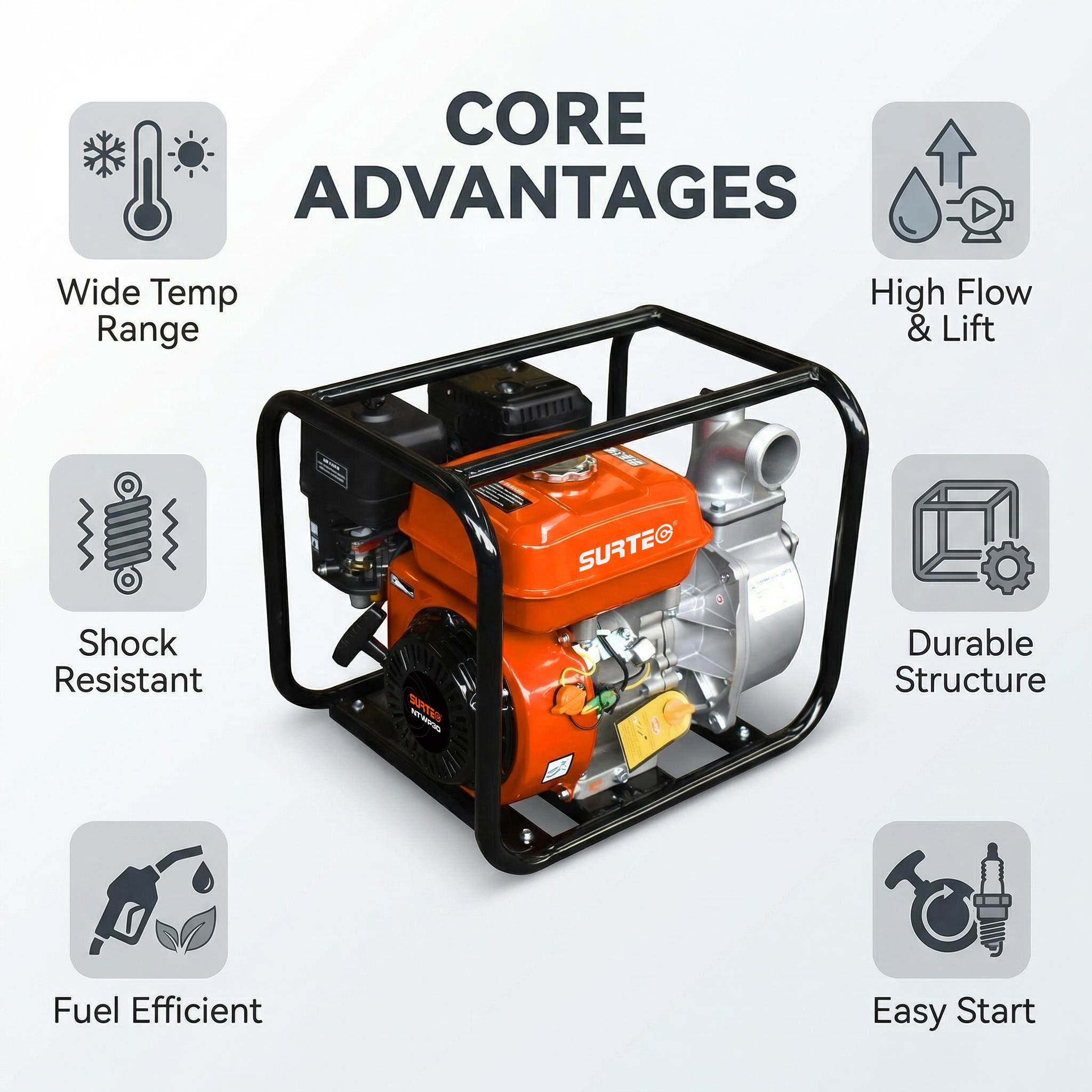

Highlights:

  • Up to 30 m lift height with strong 54 m³/h
  • Cast-iron impeller and aluminum pump body for extended durability
  • SURTEC engine ensures quick, effortless starting
  • Drop-forged steel crankshaft and camshaft for enhanced structural strength
  • Patented cylinder design improves heat efficiency and reduces fuel loss
  • Reinforced engine housing for better resistance to impact and vibration
Request A Quote
Certification 1
Certification 2
Certification 3
Certification 4
Certification 5
Certification 6
Certification 7

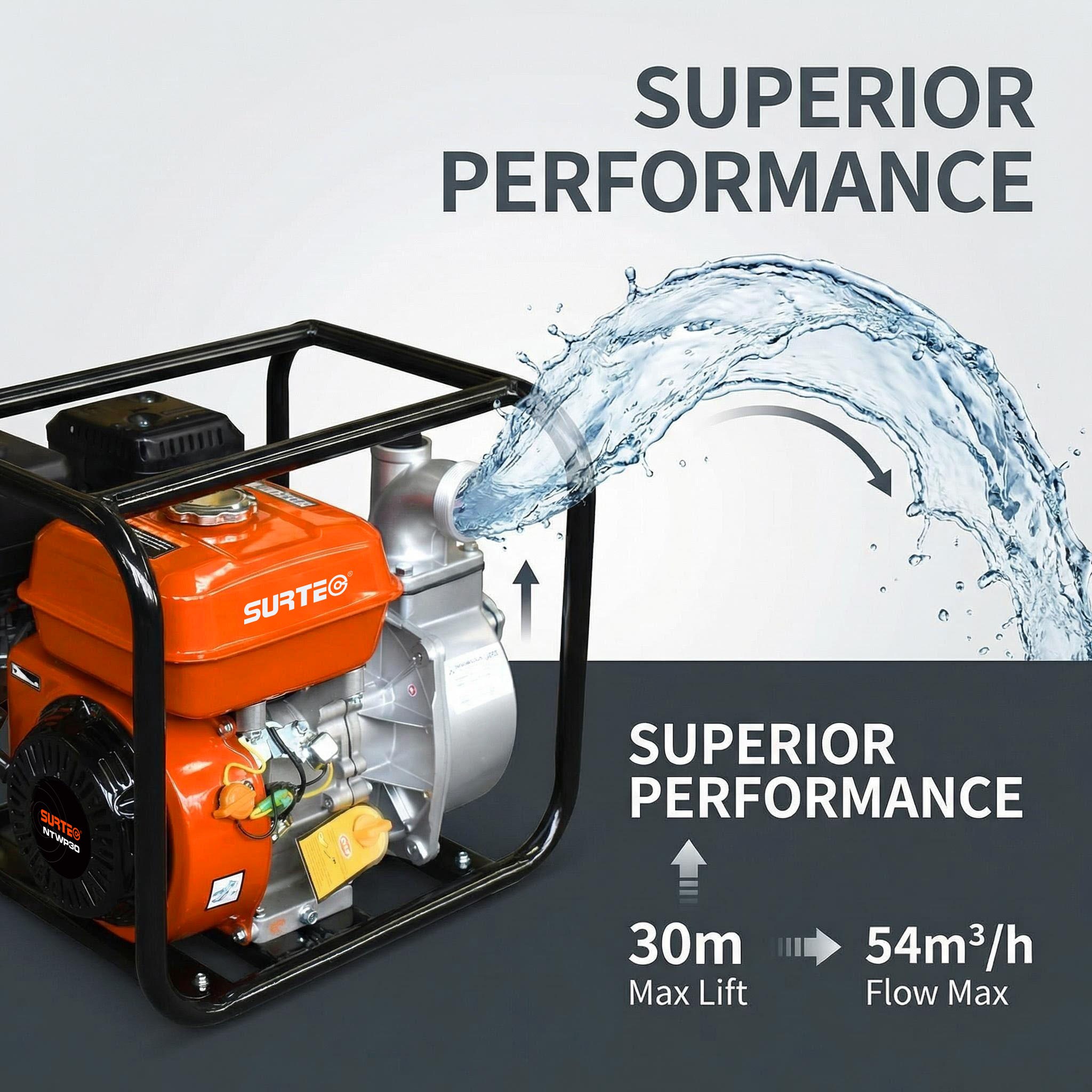

The SURTEC NTWP30 is a 3-inch gasoline water pump that brings real volume to the petrol side of the range: up to 54 m³/h of flow at 30 meters of lift, moving water through large 80mm inlet and outlet ports. It is a commercial water pump for crews that need to shift water quickly across farms, job sites and emergency scenes — with the quick, effortless starting that SURTEC gasoline engines are known for. Where smaller ports mean more trips, this 3-inch bore gets the transfer done in fewer passes.

The 170F OHV engine underneath is a single-cylinder, air-cooled, four-stroke unit of 212cc, delivering a maximum output of 7.0hp and 13.5N·m of torque. A 70x55mm bore and stroke with an 8.5:1 compression ratio gives easy cold starts and smooth running, while drop-forged steel crankshaft and camshaft components raise toughness and long-term durability. SURTEC's patented cylinder design improves heat efficiency and cuts fuel consumption — holding at or below 395 g/kW·h — and the strengthened engine casing resists impact and vibration through continuous operation. Manual starting is simple and dependable, backed by a 3.6L fuel tank for long sessions and straightforward 0.6L oil servicing.

The pump assembly is built for flow. A cast-iron impeller paired with a precision-machined aluminum body delivers excellent flow characteristics and steady suction performance to 6 meters. Self-priming design keeps each restart quick at a new water source, and the ports connect straight to standard 3-inch hose. The aluminum body keeps the unit lighter than full cast-iron builds — an advantage when one crew moves the pump between wells, channels and tanks through a working day — while the cast-iron impeller keeps the hard-wearing edge where it matters most.

Stability comes from the full-frame chassis, which incorporates vibration-reduction elements to improve handling comfort and keep the pump planted during long sessions. Rated for reliable operation from -5°C to 45°C, the NTWP30 covers cool early-season starts and hot midsummer duty alike.

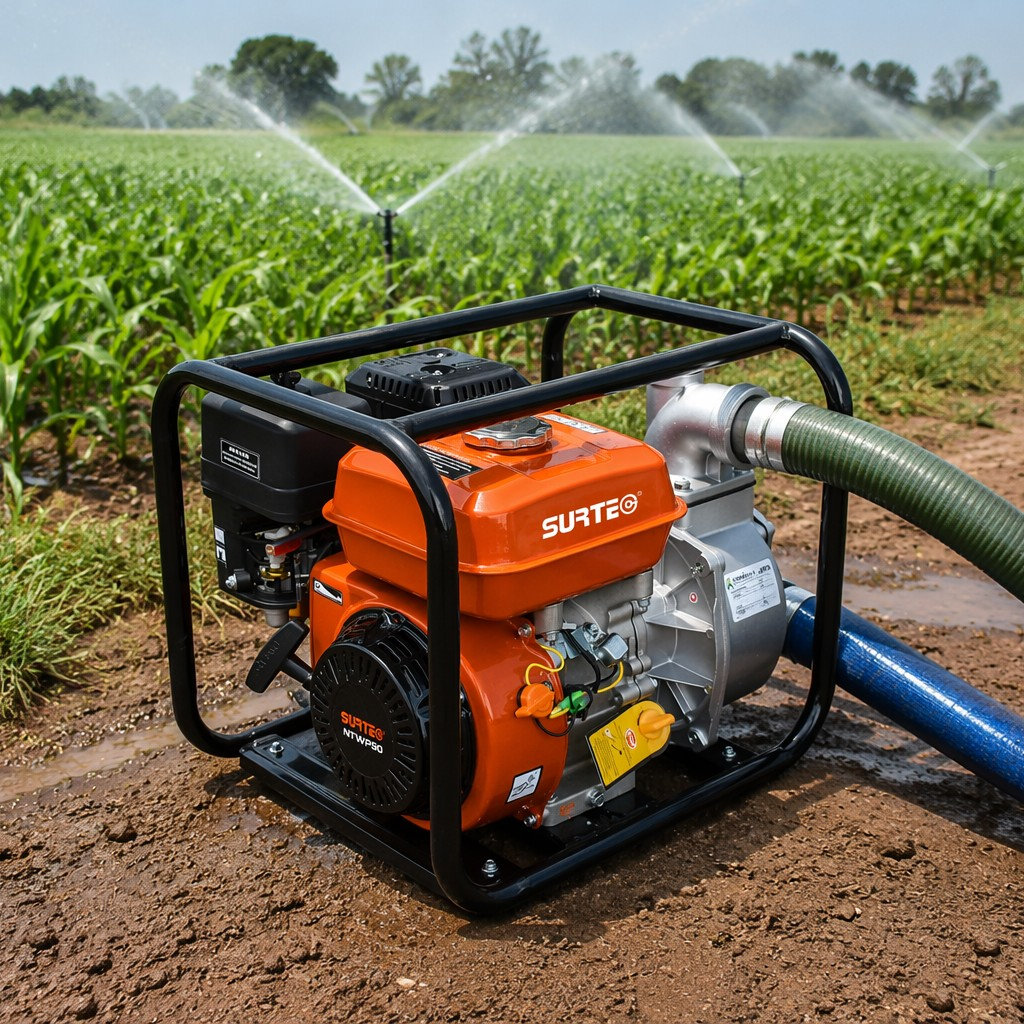

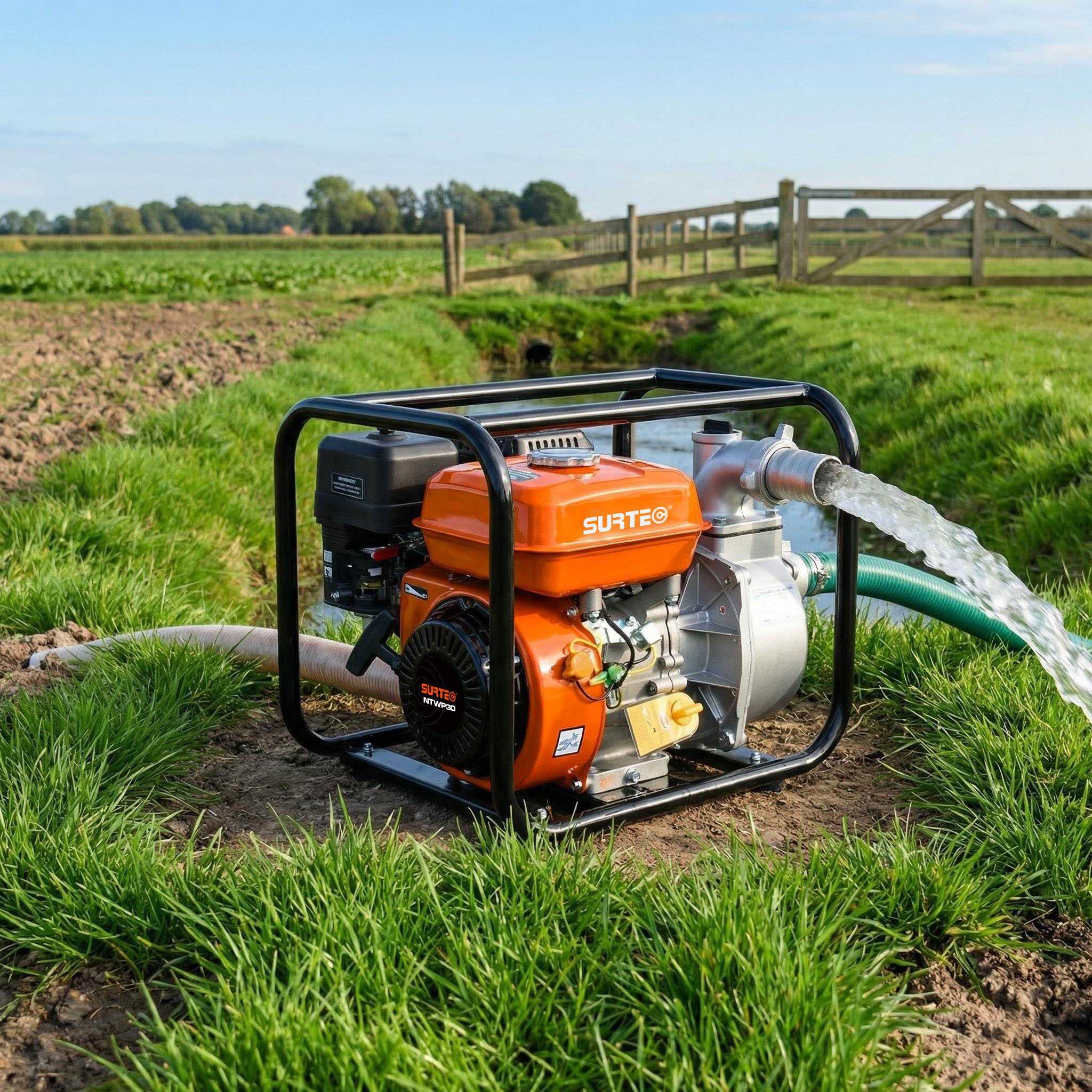

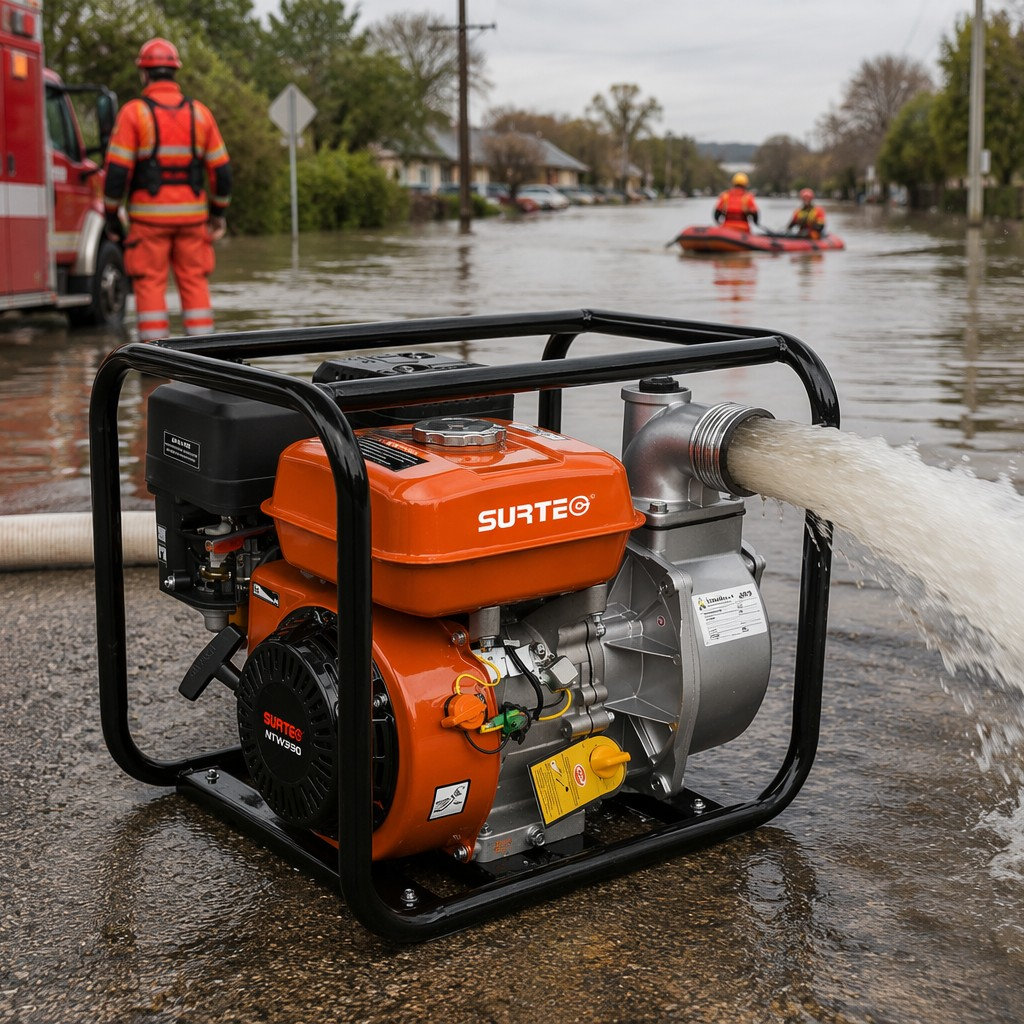

Applications span agricultural irrigation, firefighting support, emergency drainage, household water supply and varied field work. For outdoor power equipment dealers, garden machinery suppliers and businesses seeking a high-quality gasoline water pump solution, Surtec offers competitive water pressure pump prices, stable wholesale supply and full spare parts support through authorized distributors and dealers. For Latin America, Africa, Eastern Europe and Southeast Asia, the NTWP30 is the high-volume 3-inch gasoline workhorse that earns repeat orders.

Product Specifications

Inlet Size 80mm(3")
Outlet Size 80mm(3")
Max. flow 54m³/h
Lift Height 30m
Suction Lift 6m
Pump Type Self-priming pump
Material of Impeller Cast iron
Material of Pump body Aluminium
Engine Model 170F
Engine Type Single cylinder,Air cooling,4 stroke,OHV
Bore x Stroke(mm) 70x55
Compression Ratio 8.5:1
Max. Output 7.0hp
Max.Torque 13.5N.m
Displacement  212cc
Material of Crankshaft Drop-froging Steel
Material of Camshaft Drop-froging Steel
Fuel Consumption(g/kw.h) ≤395
Starting Type Manual
Fuel Tank Capacity  3.6L
Oil Capacity 0.6L

Our Hottest Machines

FAQ

Quick answers to help you learn more about our offerings, processes, and how we can support your project needs.

Yes, our water pumps are designed with self-priming capabilities for quick and easy operation.

For gasoline models, use standard unleaded gasoline. For diesel models, use high-quality diesel fuel.

Specific trash pump models are designed for muddy or debris-laden water; standard models are for clean water.

Most models provide a stable suction lift of up to 6-8 meters depending on the specific configuration.

We recommend an initial oil change after 20 hours of use, and then every 100 hours thereafter.

Yes, SURTEC provides a standard manufacturer warranty on all outdoor power equipment.
