SURTEC NTWP20CI

SURTEC NTWP20CI

High Pressure Water Pump with 80m Lift, Reliable Supplier

Highlights:

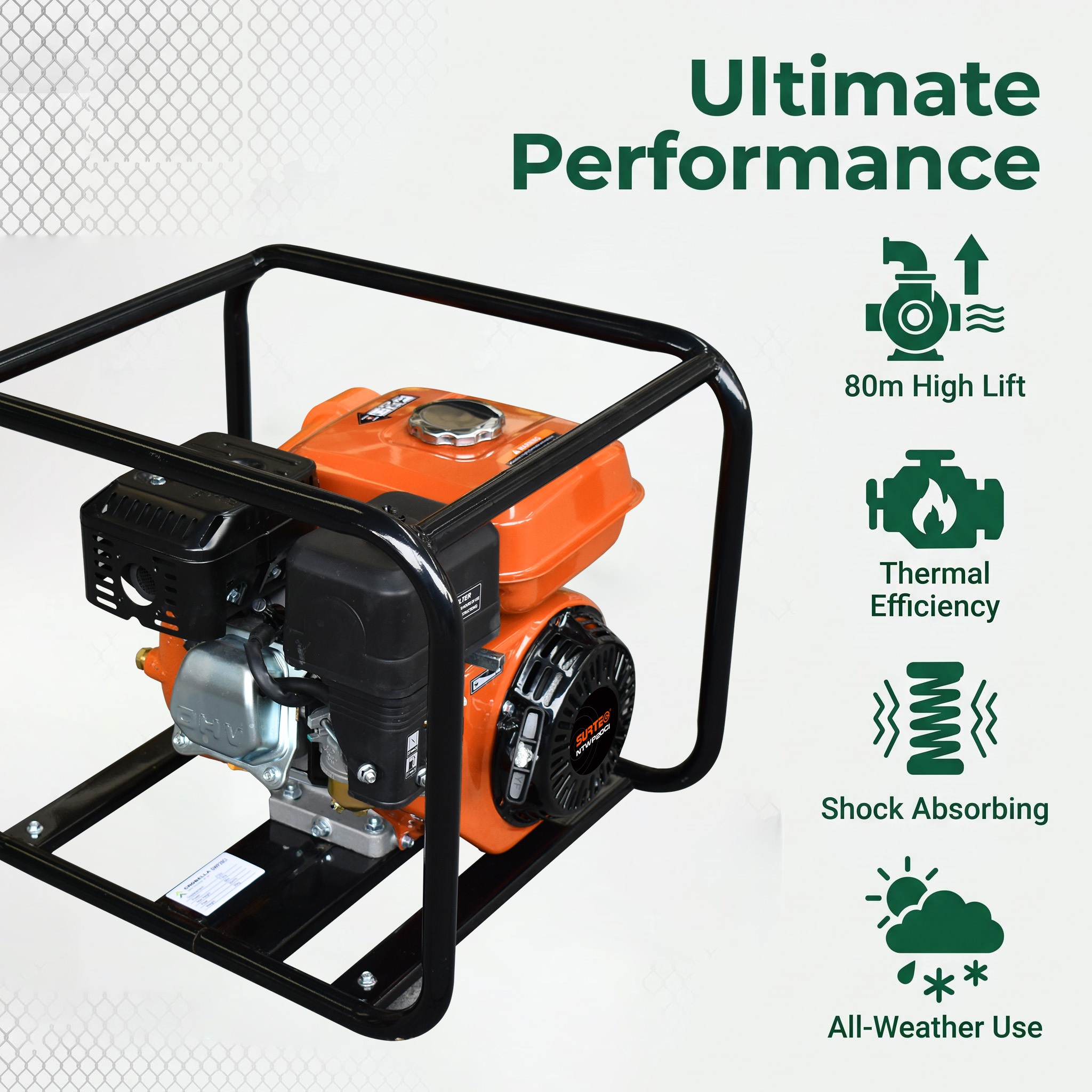

  • High-pressure lift up to 80 m
  • 175 mm cast-iron impeller for powerful discharge performance
  • Precision-machined cast-iron pump body for durable, fluid-efficient flow
  • Reinforced engine housing improves vibration and impact resistance
  • Patented cylinder design enhances thermal efficiency and reduces fuel loss
  • 42CrMo forged crankshaft & camshaft for long service life
Request A Quote
Certification 1
Certification 2
Certification 3
Certification 4
Certification 5
Certification 6
Certification 7
The SURTEC NTWP20CI is a high pressure water pump built around a cast-iron centrifugal pump system — engineered for jobs that demand sustained high-pressure output from a gasoline unit. With lift reaching up to 80 meters and flows up to 30 m³/h, it is built as a commercial water pump where reach — not just volume — decides whether the water gets where it needs to go.

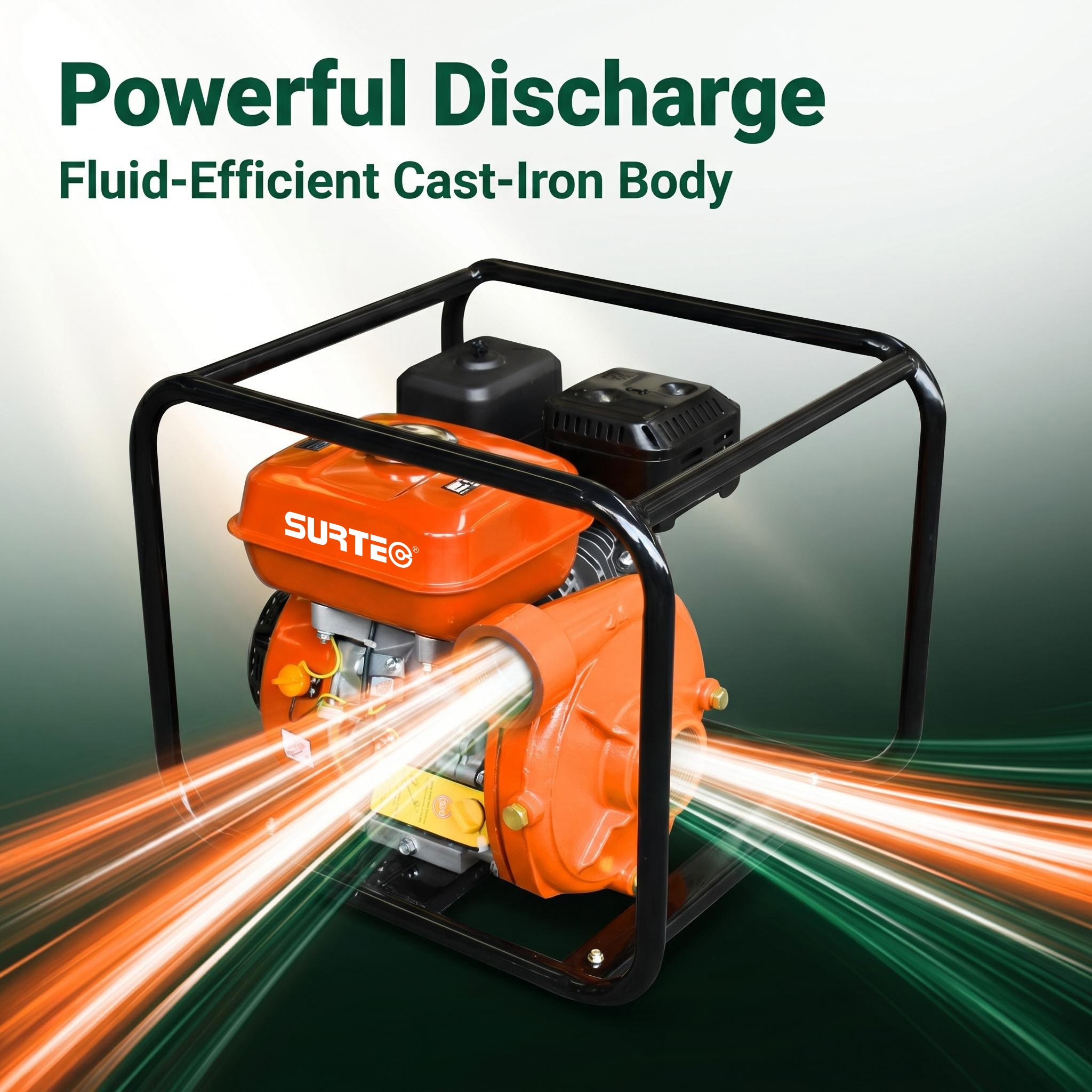

The hydraulic end is all cast iron, machined for performance. A 175mm cast-iron impeller drives powerful discharge, while the precisely machined, flow-optimized pump body keeps lift height, suction capability and flow consistent hour after hour. Suction lift reaches 6 meters, self-priming design speeds set-up at the water source, and 2-inch (50mm) inlet and outlet ports connect directly to standard hose and pipe. Cast-iron construction shrugs off wear from continuous duty and holds its shape under heat, keeping performance steady across long pumping cycles. That combination suits fire-support lines, emergency flood control, uphill irrigation and tall-tank supply — duties where pressure collapse is not an option.

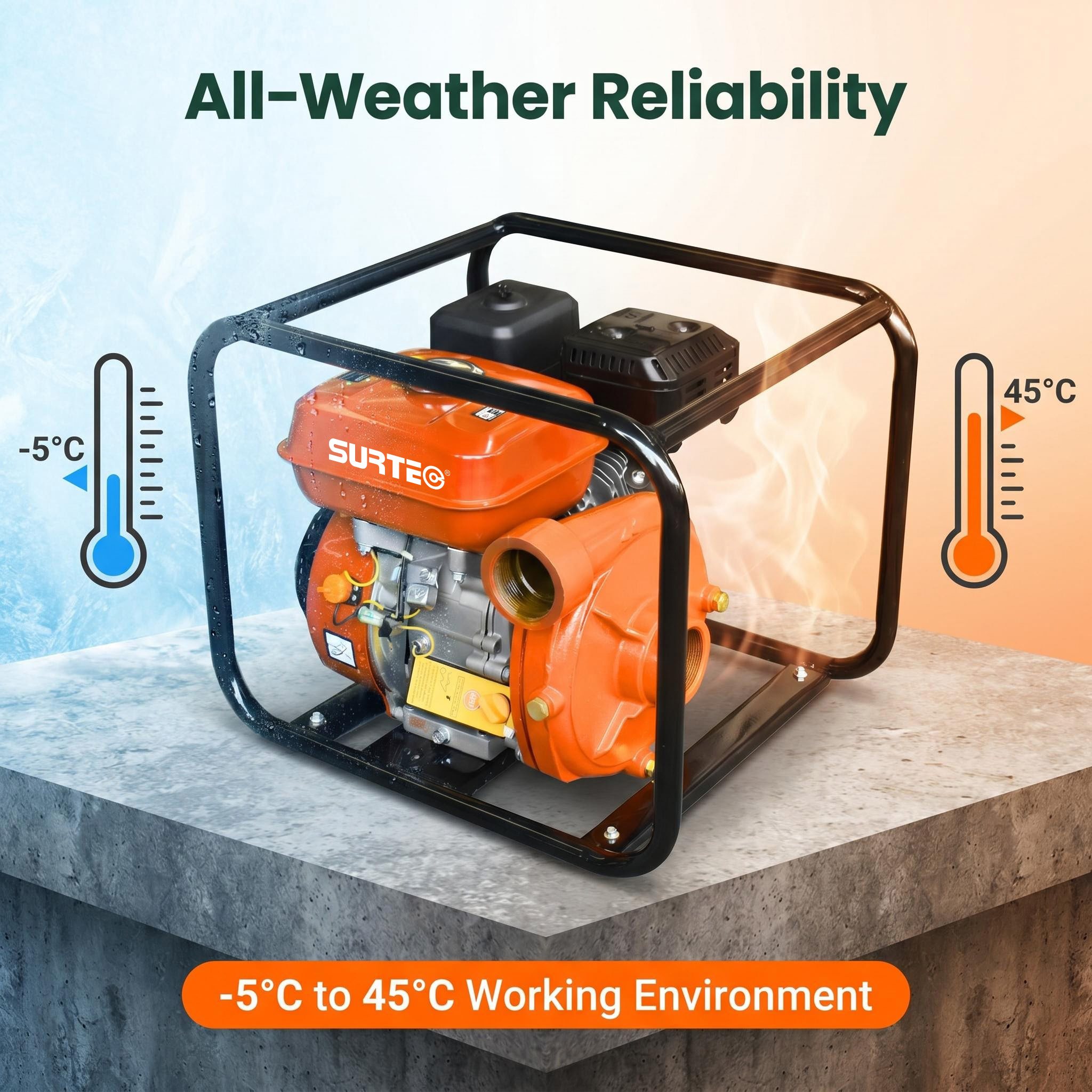

Power comes from the proven SURTEC 170F gasoline engine: a single-cylinder, air-cooled, four-stroke OHV unit of 212cc, with maximum output of 7.0hp and 13.5N·m of torque. A 70x55mm bore and stroke and an 8.5:1 compression ratio underpin its easy starting and smooth running. Drop-forged 42CrMo steel crankshaft and camshaft give the long-service strength ordinary units lack, and SURTEC's patented cylinder structure raises thermal efficiency while cutting fuel consumption — holding at or below 395 g/kW·h. A strengthened engine casing resists shock and vibration through long working hours, and every unit endures prolonged high-intensity testing for stable operation from -5°C to 45°C.

The chassis is built to match. A dedicated full-frame structure integrates damping elements that significantly minimize vibration, improving handling and protecting components over the machine's service life. Easy starting and simple maintenance — a 3.6L fuel tank for long sessions, 0.6L oil capacity and accessible service points — keep the NTWP20CI productive day after day with minimal downtime.

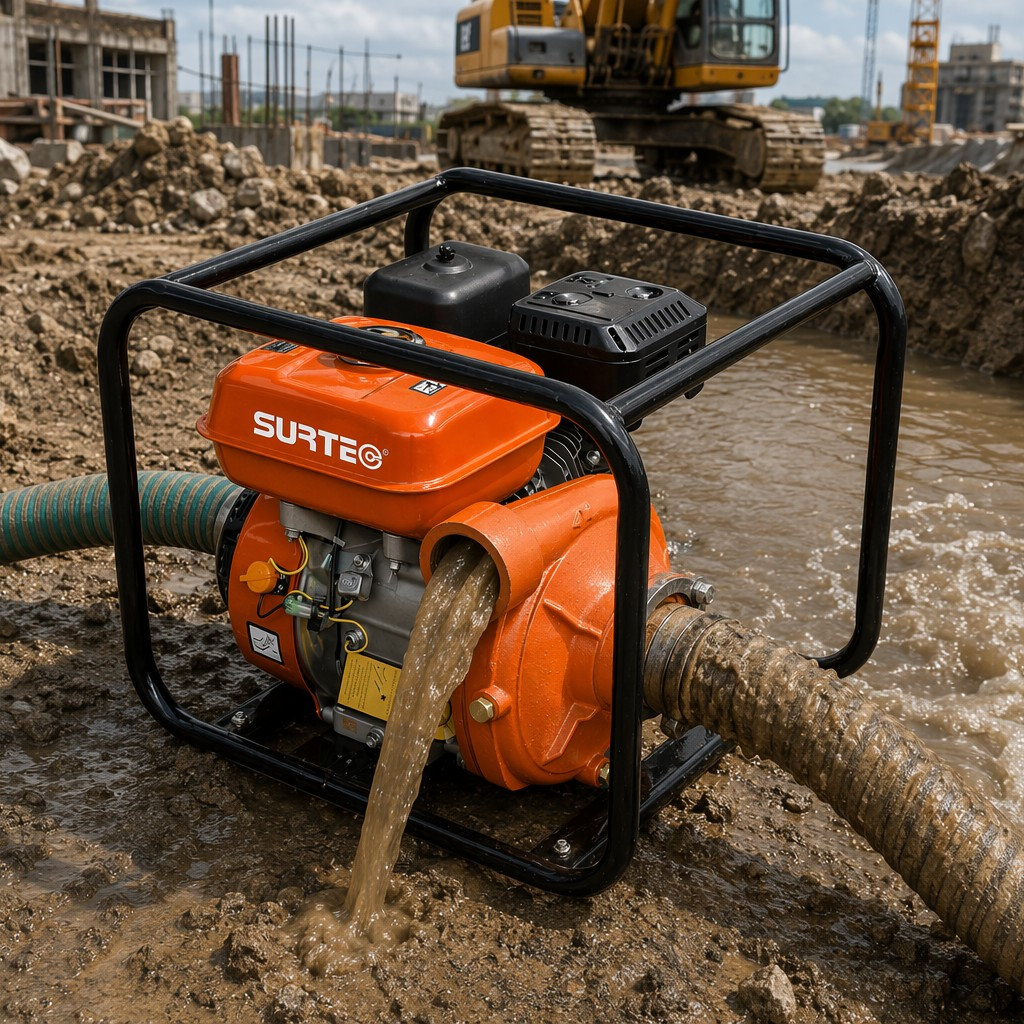

Applications cover agricultural irrigation, firefighting support, emergency flood control, household water supply and marine-related pumping. For gasoline water pump suppliers, garden machinery suppliers and outdoor power equipment dealers seeking a high-pressure cast-iron pumping solution, Surtec delivers competitive water pressure pump prices, stable wholesale volumes and full spare parts support through authorized distributors and dealers. In Latin America, Africa, Eastern Europe and Southeast Asia, the NTWP20CI is the high-reach answer where standard pumps fall short.

Product Specifications

Inlet Size 50mm(2")
Outlet Size 50mm(2")
Max. flow 30m³/h
Lift Height 80m
Suction Lift 6m
Pump Type Centrifugal Pump
Material of Impeller 175mm Cast Iron Impeller
Material of Pump body Cast iron
Engine Model 170F
Engine Type Single cylinder,Air cooling,4 stroke,OHV
Bore x Stroke(mm) 70x55
Compression Ratio 8.5:1
Max. Output 7.0hp
Max.Torque 13.5N.m
Displacement  212cc
Material of Crankshaft Drop-froging Steel
Material of Camshaft Drop-froging Steel
Fuel Consumption(g/kw.h) ≤395
Starting Type Manual
Fuel Tank Capacity  3.6L
Oil Capacity 0.6L

Our Hottest Machines

FAQ

Quick answers to help you learn more about our offerings, processes, and how we can support your project needs.

Yes, our water pumps are designed with self-priming capabilities for quick and easy operation.

For gasoline models, use standard unleaded gasoline. For diesel models, use high-quality diesel fuel.

Specific trash pump models are designed for muddy or debris-laden water; standard models are for clean water.

Most models provide a stable suction lift of up to 6-8 meters depending on the specific configuration.

We recommend an initial oil change after 20 hours of use, and then every 100 hours thereafter.

Yes, SURTEC provides a standard manufacturer warranty on all outdoor power equipment.
