SURTEC NTDE192F

SURTEC NTDE192F

12HP Diesel Engine Assembly with 499cc Power

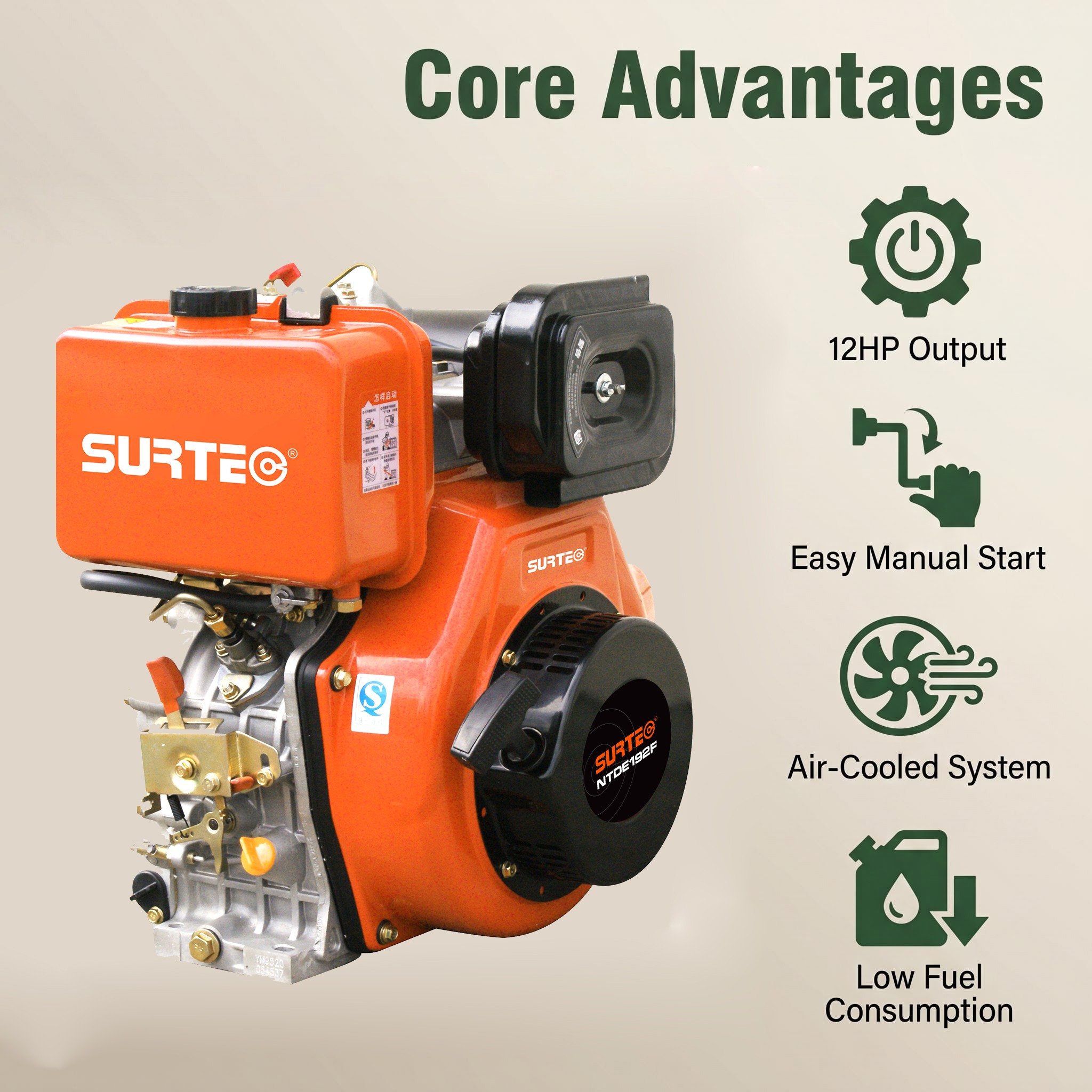

Highlights:

  • Outstanding 12HP output with consistent power delivery
  • Easy manual start and reliable ignition system
  • BOSCH-style fuel injection for precise atomization and lower emissions
  • High-strength 42CrMo forged steel crankshaft for extended durability
  • Nitrided thickened gears for smooth and stable torque transmission
  • Air-cooled system ensures thermal stability during prolonged use
Request A Quote
Certification 1
Certification 2
Certification 3
Certification 4
Certification 5
Certification 6
Certification 7
Twelve horsepower — 12hp rated — 499cc, one cylinder: the SURTEC NTDE192F is the diesel engine assembly machinery builders turn to when the application has outgrown compact power. Rated at 8.6kW at 3600r/min from a single-cylinder, horizontal, four-stroke, air-cooled block with direct injection and a 19.5:1 compression ratio, it delivers outstanding output with consistent power delivery — the kind of reserve that keeps a machine working at full load instead of leaning on its limits all day. For heavy tillers, large pump sets and generator duty, that extra displacement translates into calmer running and longer component life.

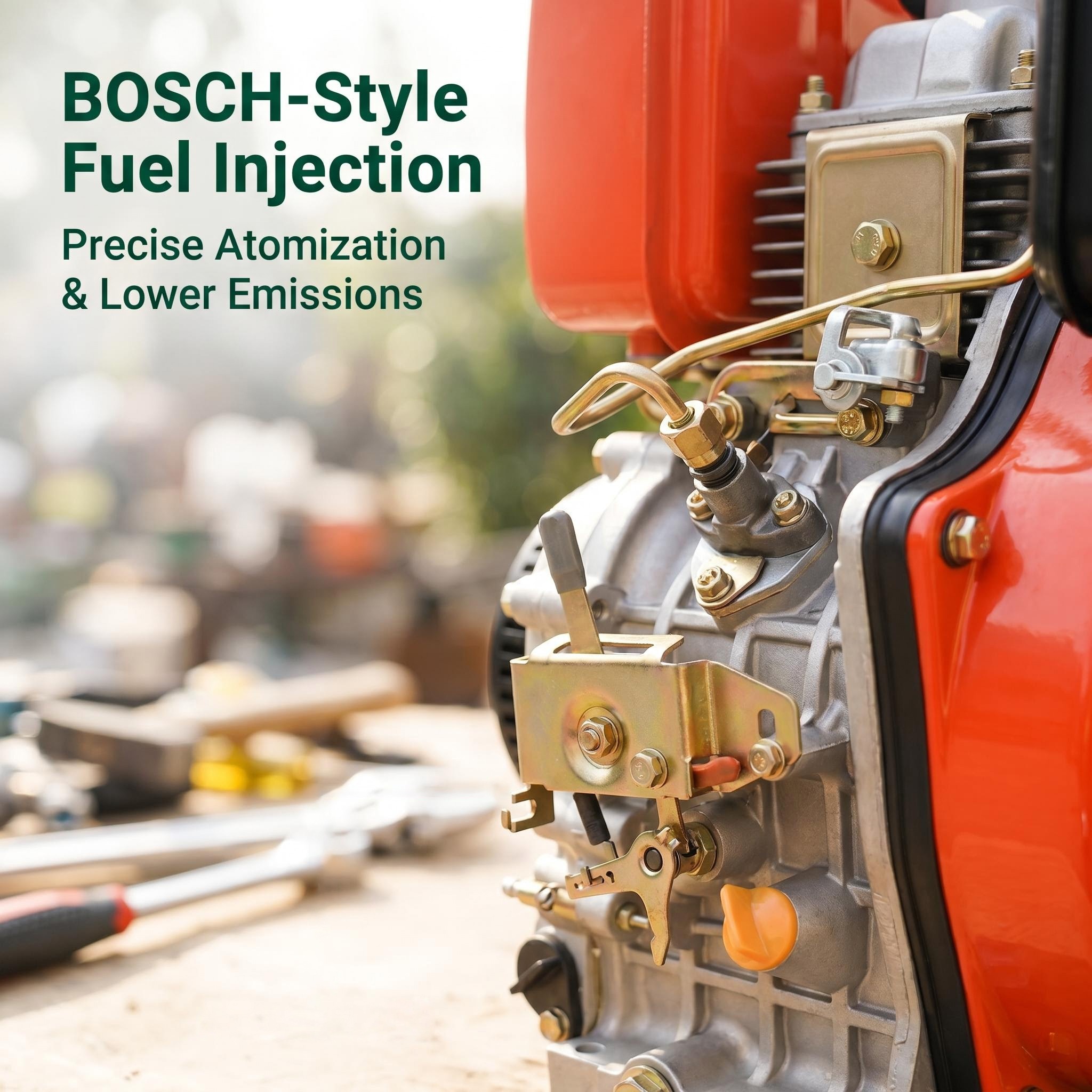

Combustion quality is the foundation. The BOSCH-style fuel injection system atomizes fuel precisely for clean, efficient burning — lower emissions, reduced fuel costs and optimized power output, with consumption held at or below 280 g/kWh even under sustained professional loads. The 5.5L fuel tank carries enough for long sessions, and the 1.65L oil tank keeps lubrication equally self-contained.

Strength follows torque. A high-strength 42CrMo forged-steel crankshaft gives the bottom end extended durability under continuous high loads, while nitrided thickened gears keep torque transmission smooth and stable — no harshness through the driveline, no premature gear wear when the work is heavy. Starting stays dependable: an easy manual start with a reliable ignition system means the engine answers the first pull, cold morning or not.

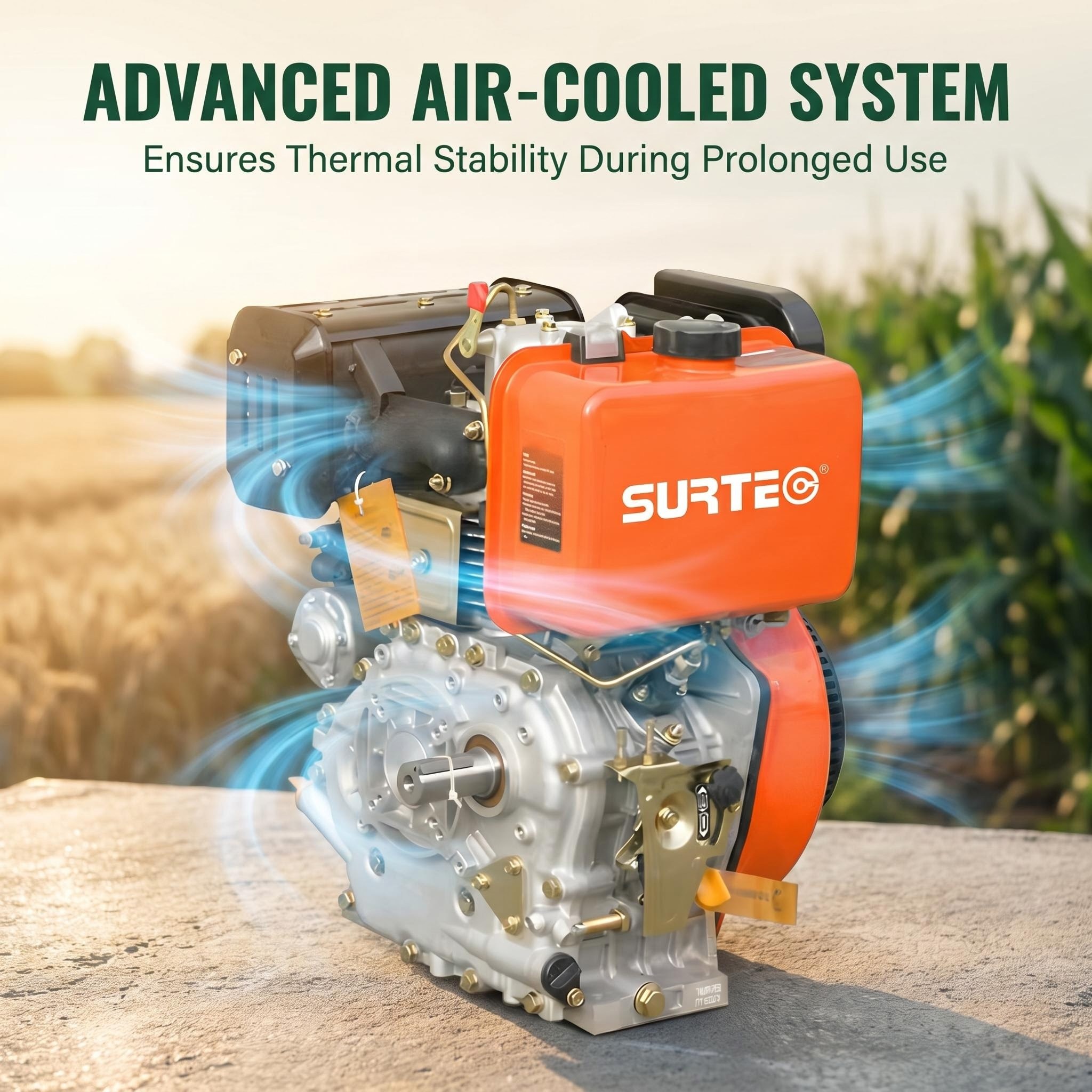

Heat management decides how long all of that lasts. The air-cooled system holds thermal stability through prolonged use, dissipating heat efficiently so the NTDE192F keeps its performance in extended operation and harsh working conditions — tested by SURTEC to run reliably from -5°C up to 45°C. Compact in size yet powerful in capability, it fits a wide range of agricultural machinery, construction equipment and transport applications; routine care is simple, with air-filter checks and cleaning or replacement every 50 hours, and OEM customization of output shafts, colors and specifications available for production programs.

For machinery factories, OEM buyers and spare-parts dealers, the NTDE192F is the diesel engine assembly that tops out a professional range: maximum single-cylinder reserve, proven internals and wholesale-ready supply. SURTEC supports every unit with comprehensive spare-parts inventory and competitive pricing — the backing of an engines supplier trusted by distributors across Latin America, Africa, Eastern Europe and Southeast Asia. Where demanding industrial environments need strength, efficiency and longevity in one package, the NTDE192F is built to be the answer.

Product Specifications

Starting system Manual
Power (hp) 12hp
Engine Type Single cylinder, Horizontal, four-stroke,Air cooled, direct injection
Displacement (cc/ml) 499cc
Rated power ((kW/(r/min)) 8.6kW/3600r/min
Compression ratio 19.5:1
Rated rotation speed (r/min) 3600r/min
Fuel consumption (g/kWh) ≤280g/kWh
Fuel tank capacity (L) 5.5L
Oil tank capacity (L) 1.65L

Our Hottest Machines

FAQ

Quick answers to help you learn more about our offerings, processes, and how we can support your project needs.

These engines are ideal for tillers, water pumps, generators, construction machinery, and more.

Check the air filter regularly and clean or replace it every 50 hours of operation to ensure optimal performance.

SURTEC engines feature high-strength forged 42CrMo steel crankshafts for maximum durability.

Our engines are tested to perform reliably from -5°C up to 45°C in various environments.

Yes, as a leading manufacturer, we maintain a comprehensive inventory of spare parts for all our engines.

Yes, we offer customization options for output shafts, colors, and other specifications.
