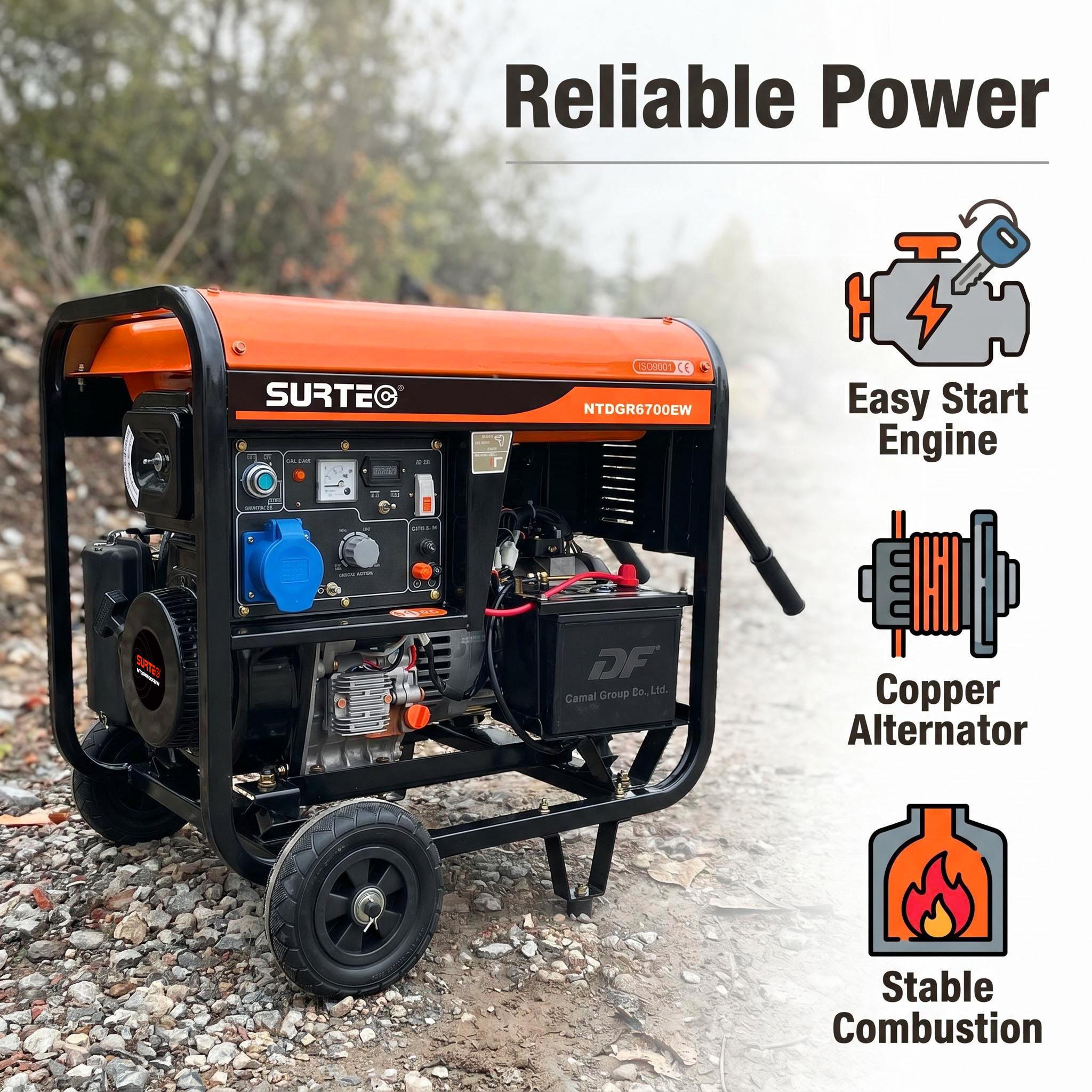

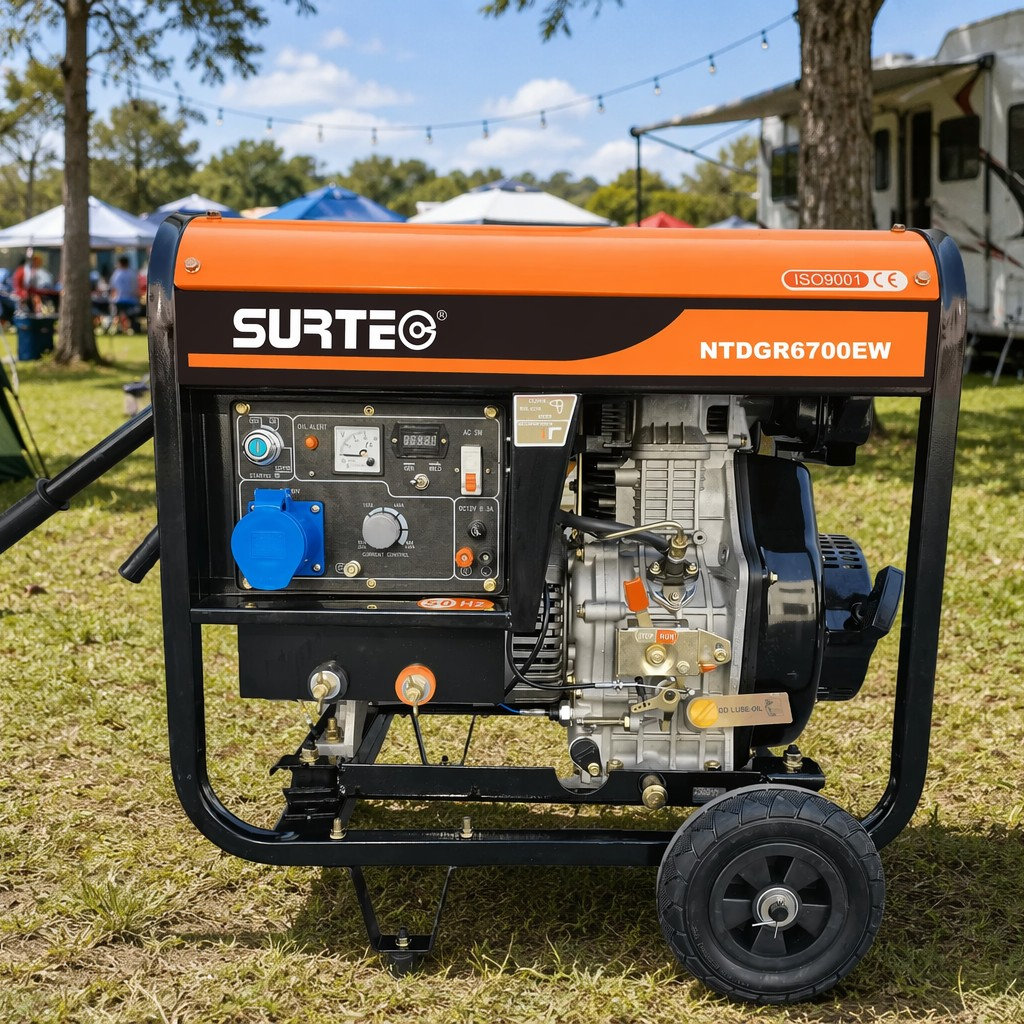

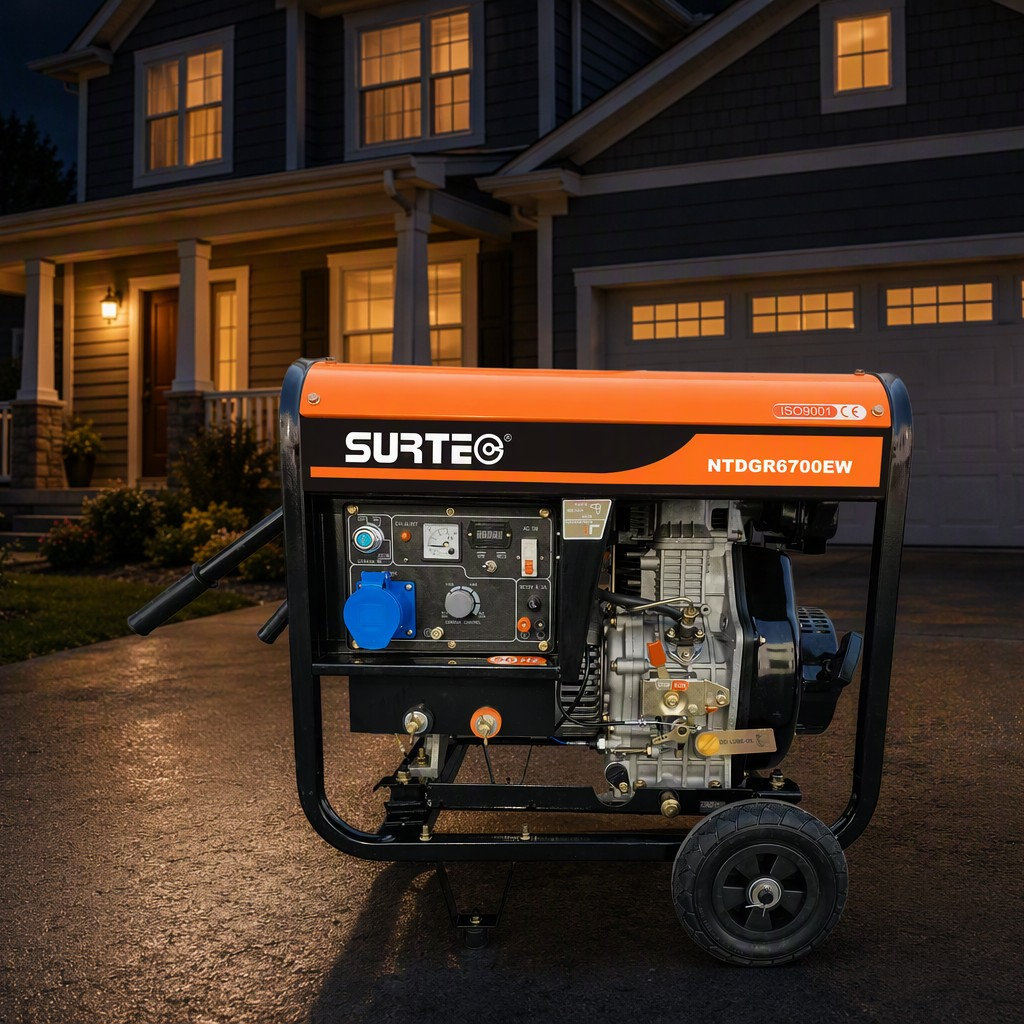

SURTEC NTDGR6700EW

SURTEC NTDGR6700EW

Diesel Welding Generator – Dual-Purpose Welding & Auxiliary Power, BOSCH-Tech Injection (Wholesale Ready)

Highlights:

  • Dual-function: welding and auxiliary power supply in one unit
  • Durable diesel engine with forged-steel components and BOSCH-tech injection
  • Supports commonly used electrodes – stable welding for maintenance and repairs
  • Copper-wound alternator – consistent electrical output for tools and lighting
  • Integrated safety functions for secure operation

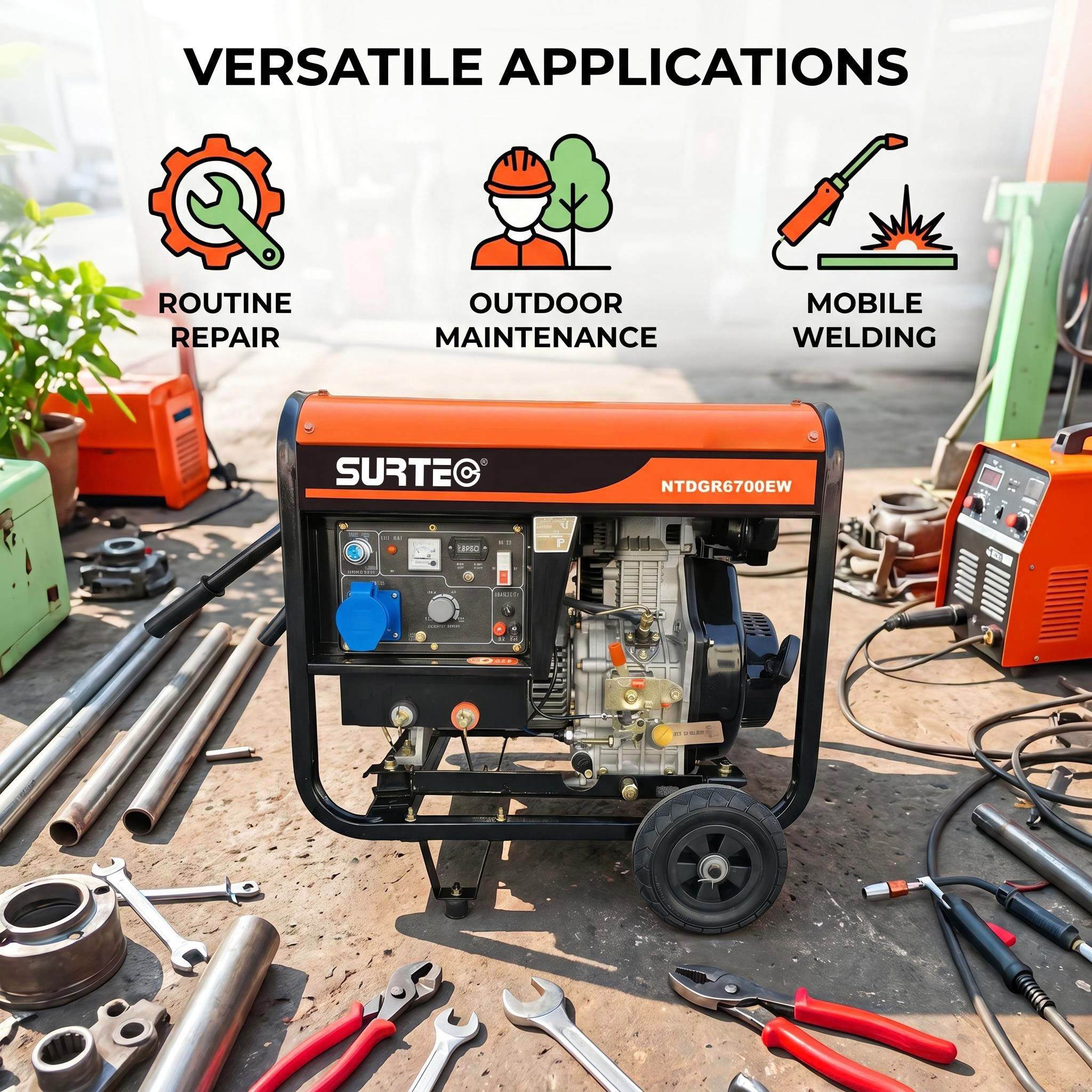

  • Suitable for varied working environments – field maintenance and outdoor fabrication
Request A Quote
Certification 1
Certification 2
Certification 3
Certification 4
Certification 5
Certification 6
Certification 7

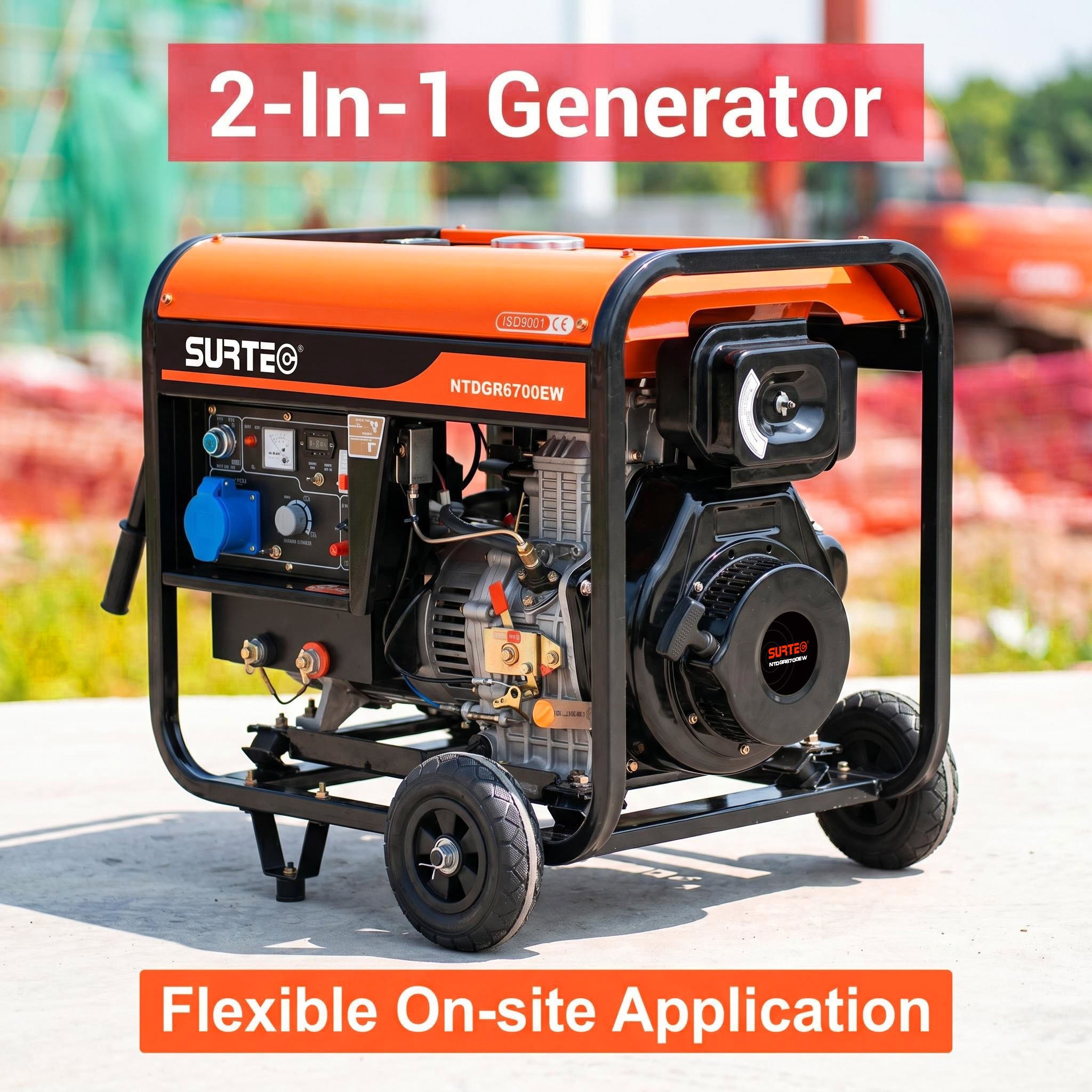

The SURTEC NTDGR6700EW is a diesel welding generator that does two jobs with one engine: it lays down a stable weld, then keeps the site's tools and lighting running — no second machine, no second fuel budget. Welding output covers a 50-180A rated current at 25-30V with a 65-70V no-load voltage, supporting commonly used electrodes from 2.4 to 4.0mm at a 60% duty cycle, while the auxiliary side delivers 4.5/5.0kW single-phase power at 50/60Hz. For field maintenance, metal repairs and outdoor fabrication, that dual purpose is the whole point of the machine.

The NTDE186FAE diesel engine — single cylinder, vertical, four-stroke, direct injection, air-cooled, displacing 418cc with an 86x72mm bore and stroke — produces 5.7kW at 3000rpm or 6.5kW at 3600rpm. Forged-steel components and a BOSCH-technology injection system keep operation smooth and fuel consumption economical at 280 g/kW·h, and the 15L fuel tank supports up to 6 hours of continuous running. Starting is flexible: manual pull or electric start from a 12V 30Ah battery, so cold mornings and tired batteries never strand a job.

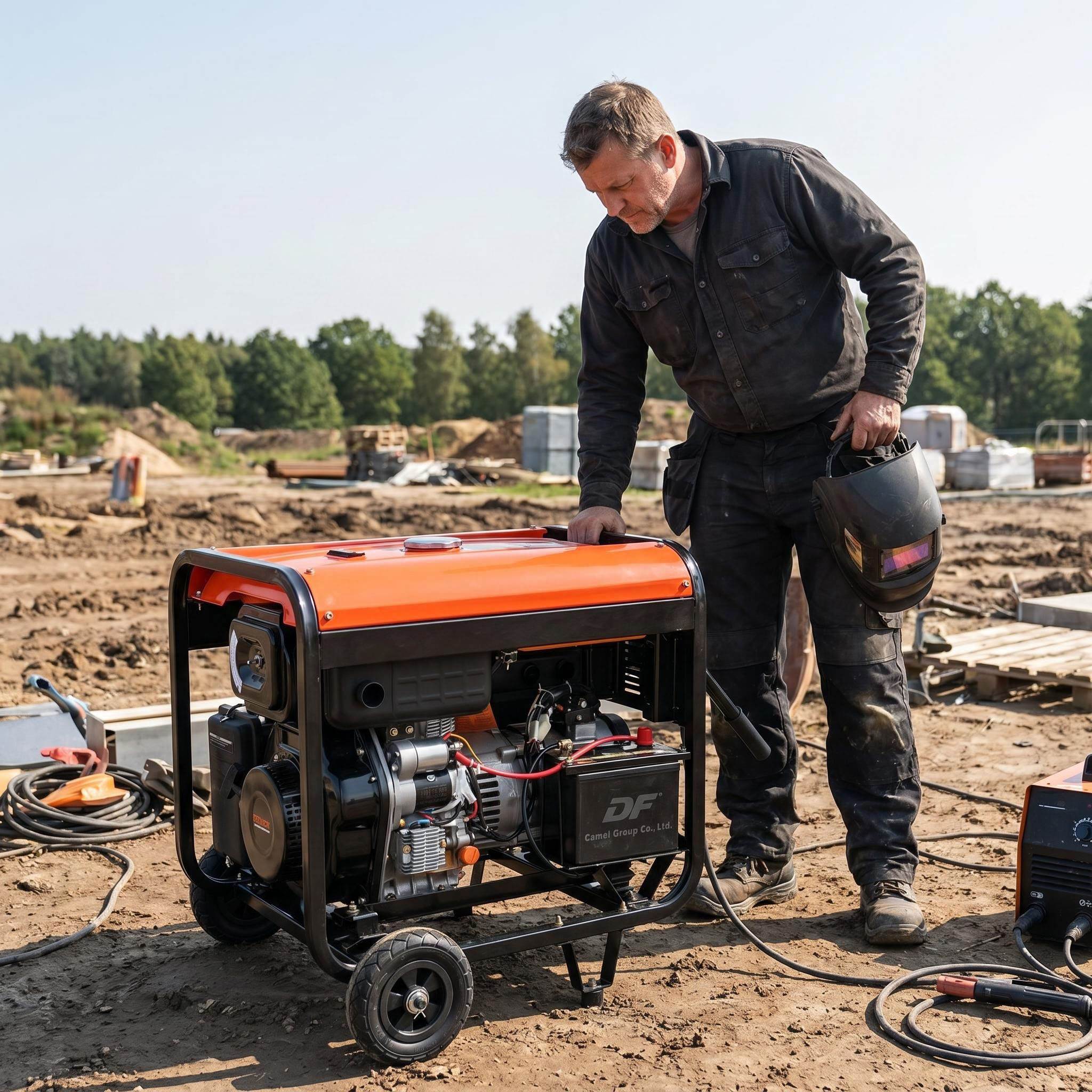

Welding quality is where the design earns its name. The arc strikes easily and holds steady through maintenance work and structural repairs, letting operators work with common electrodes without fussing over settings. The copper-wound alternator supplies clean, consistent electricity alongside the arc, so a grinder, a work light or a hand tool can run while the welding continues — on-site productivity without separate power sources.

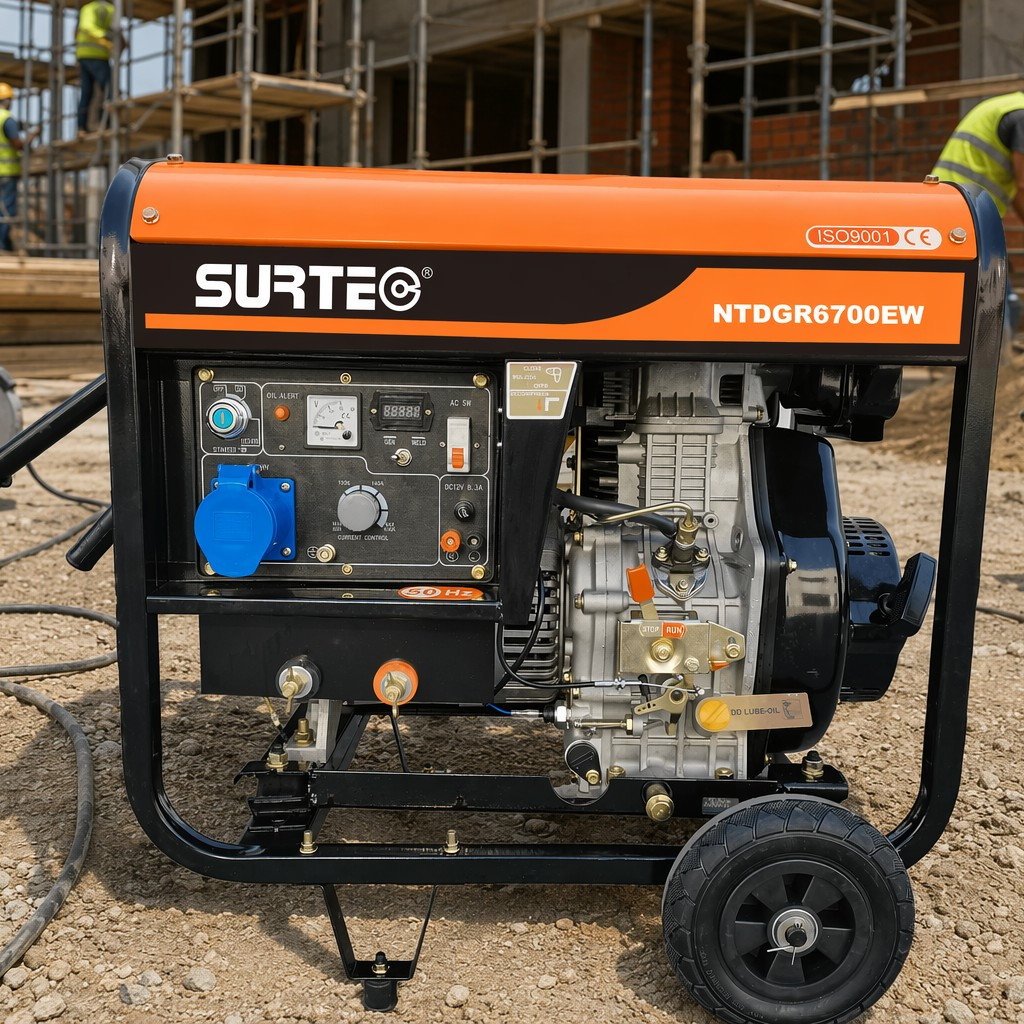

Under the skin, separate-excitation AVR voltage regulation with diode rectification, insulation grade F and a 2-pole design keep the electrical side disciplined. Integrated safety functions guard daily operation, and the rigid drive-bearing connection between engine and alternator shrugs off vibration and rough transport. At 77 dB(A) at 7 meters it works as an open-frame field machine — built for construction sites, farm repairs and wherever the work happens outdoors.

For equipment dealers, rental fleets and distributors serving construction, agricultural and field-service markets, the NTDGR6700EW is a practical inventory choice with a clear pitch: one diesel machine, two working functions. Wholesale quantities, stable supply and competitive pricing come from the generator factory, backed by full spare parts support through authorized distributors and dealers. As a portable welding generator diesel professionals can depend on for daily fieldwork, the NTDGR6700EW fills a gap many ranges still lack — and for portable generator suppliers across Latin America, Africa, Eastern Europe and Southeast Asia, it is the unit their customers keep asking for.

Product Specifications

Rated frequency(Hz) 50     60
Rated power(kW) 4.5   5.0
Rated current(A) 20.4    22.7
Rated speed(rpm) 3000   3600
Phase No. Single phase
Power factor(cosφ) 1
No load welding voltage(V) 65-70
Rated welding current(A) 50-180
Welding voltage(V) 25-30
Welding load continous ratio 60%
Electrode diameter(mm) 2.4-4.0
Excitation mode Seperate-excitation+AVR voltage regulation
Rectifying mode Diode
Connection mode Drive bearing, rigid connection
Insulation grade F
Pole number 2
Engine Model NTDE186FAE
Engine Type Single cylinder, vertical, four-stroke, direct injection, air-cooled
Displacement(cc) 418
Bore×stroke(mm) 1-86*72
Compression ratio 19:01
Rated power(kW) 5.7    6.5
Lubrication system Pressure splashed
Lube oil brand CD grade or SAE10W-30, 15W-40
Lub capacity(L) 1.65
Starting system Manual&Electric
Battery capacity(V-Ah) 12V-30Ah
Fuel type 0＃（summer）-10＃（winter）-35＃（chillness）diesel
Fuel consumption(g/kW.h) 280
Fuel tank capacity(L) 15
Continous running time(h) 6
Noise level/7m[dB(A)] 77
