SURTEC NTDGR6700T

SURTEC NTDGR6700T

Silent Diesel Generator – Low-Noise Enclosure, BOSCH-Tech Injection & Copper-Coil Alternator (Wholesale Ready)

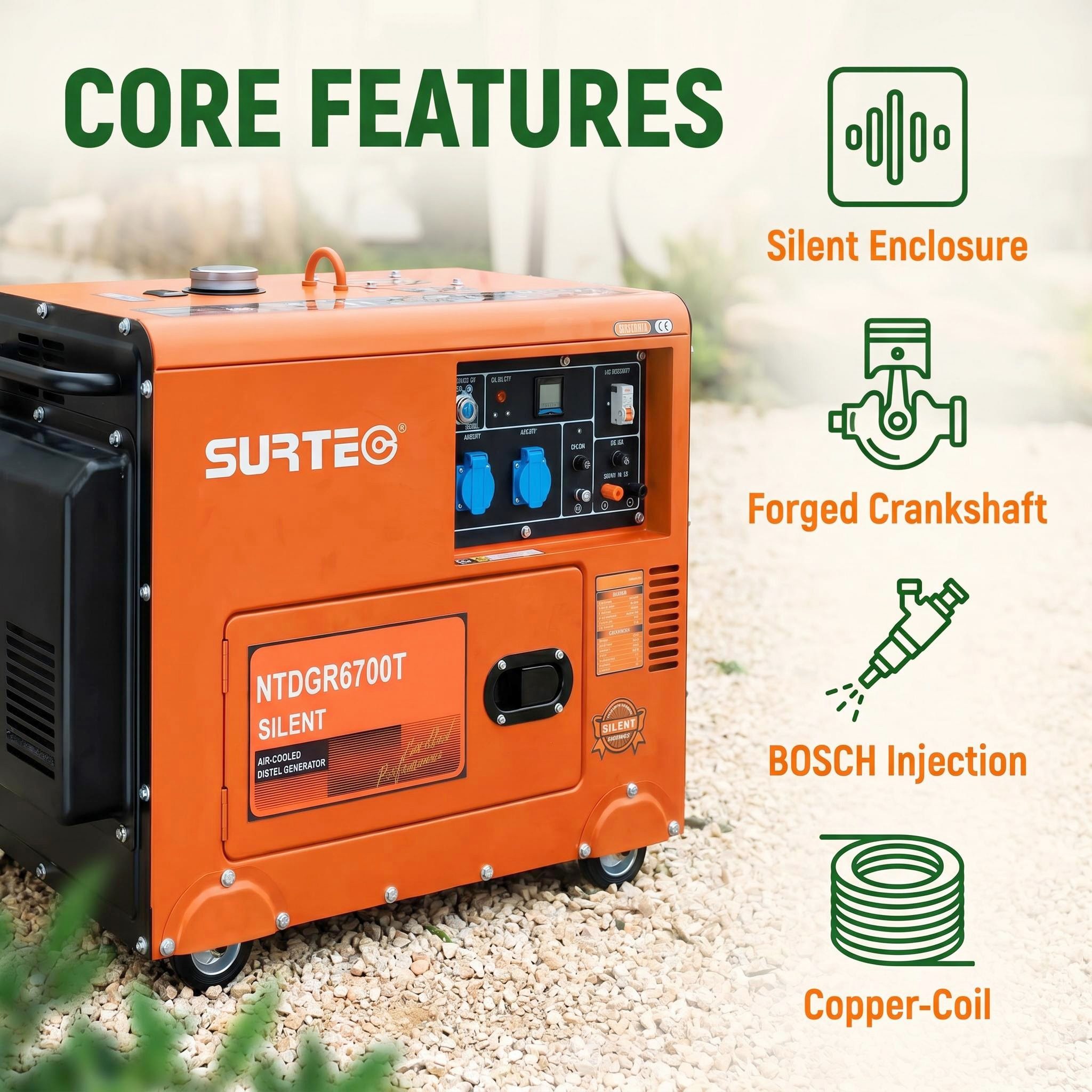

Highlights:

  • Silent enclosure – low-noise operation suitable for residential and regulated workplaces
  • 42CrMo forged crankshaft and nitrided steel gears – excellent wear resistance under load changes
  • BOSCH-based fuel injection – stable combustion and economical fuel consumption
  • Copper-coil alternator – balanced, clean voltage for sensitive equipment
  • Digital metering and built-in safety functions – short-circuit protection and low-oil shutdown
  • Ideal for workshops, mobile services, and general backup power
Request A Quote
Certification 1
Certification 2
Certification 3
Certification 4
Certification 5
Certification 6
Certification 7

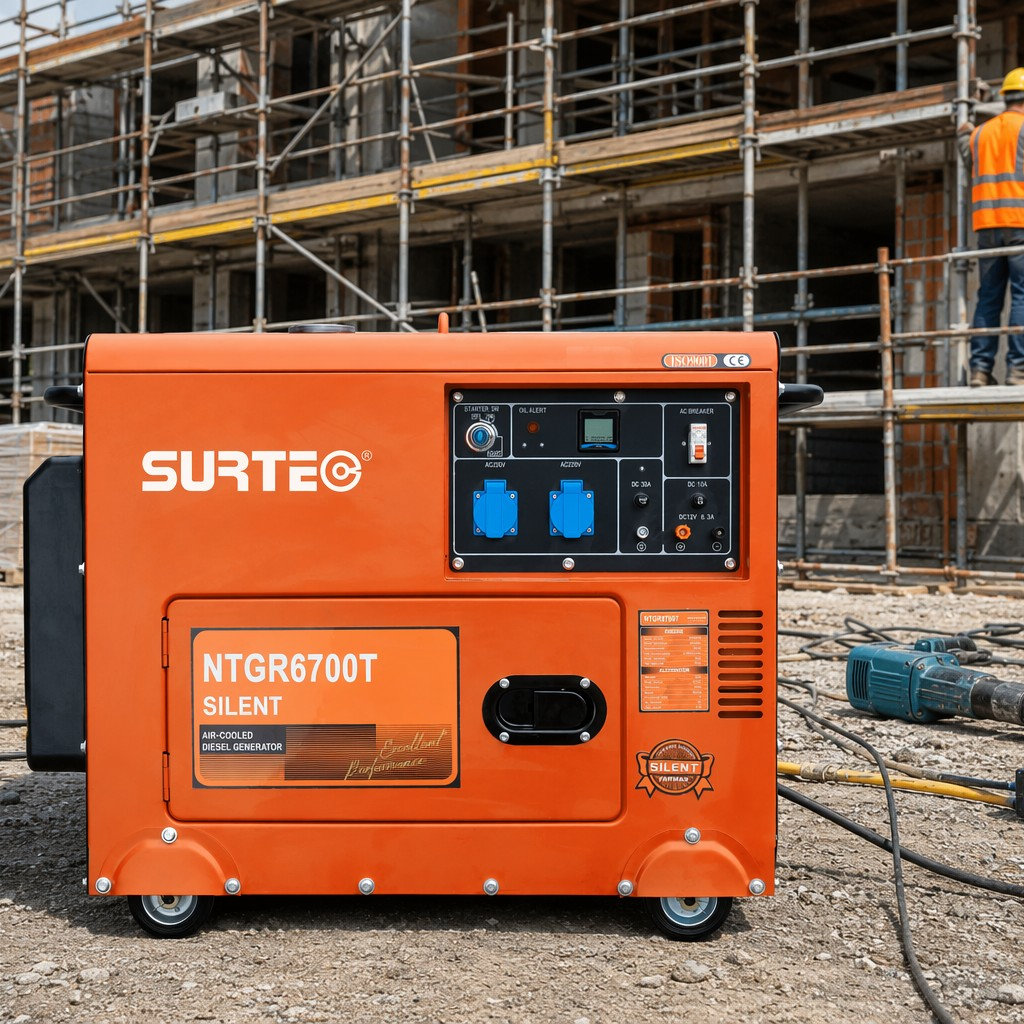

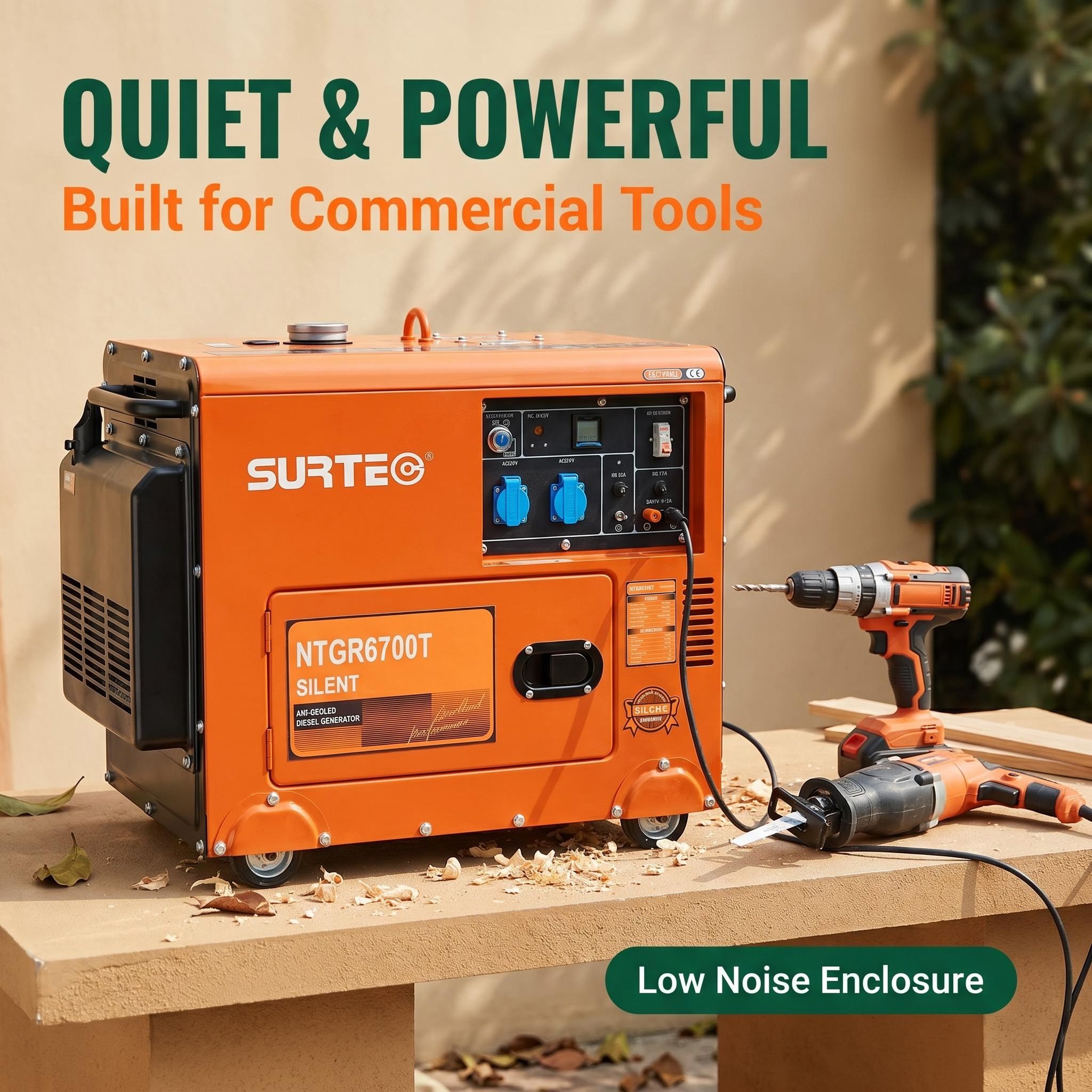

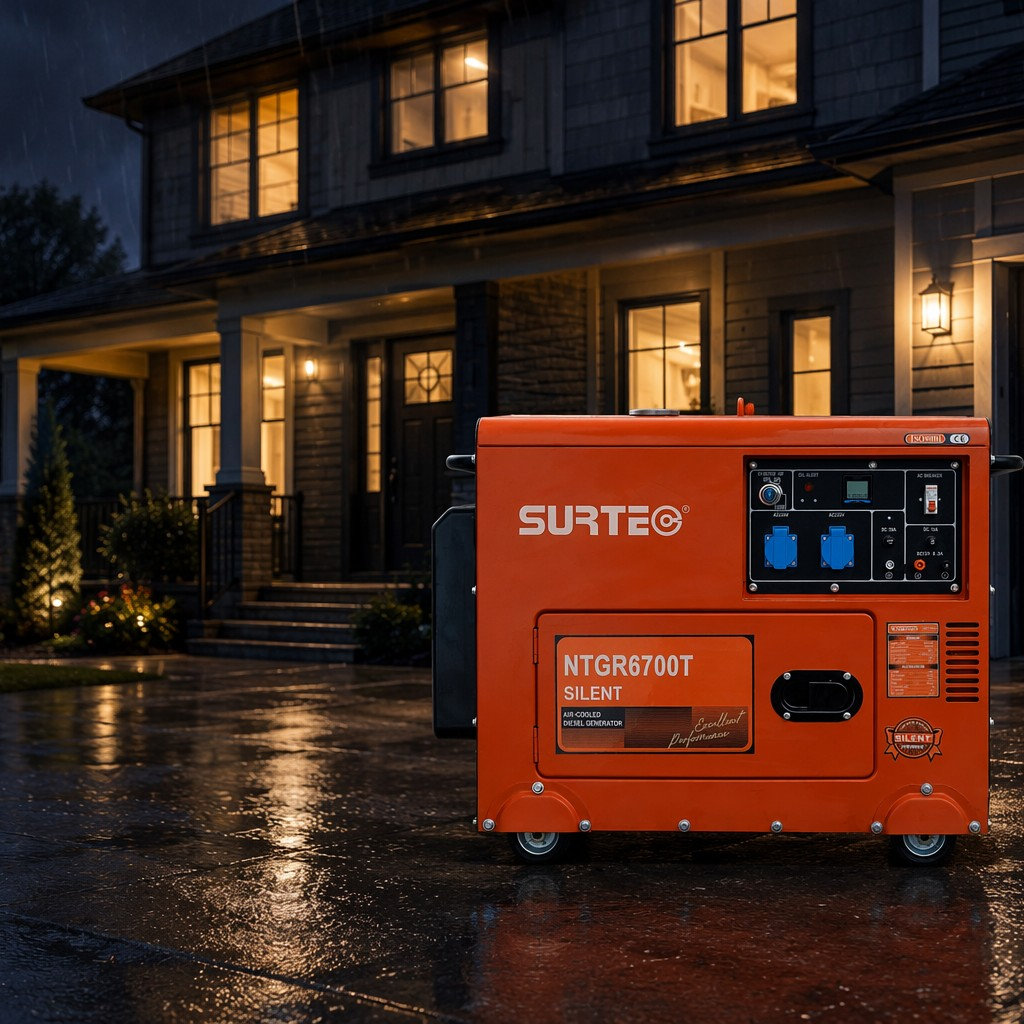

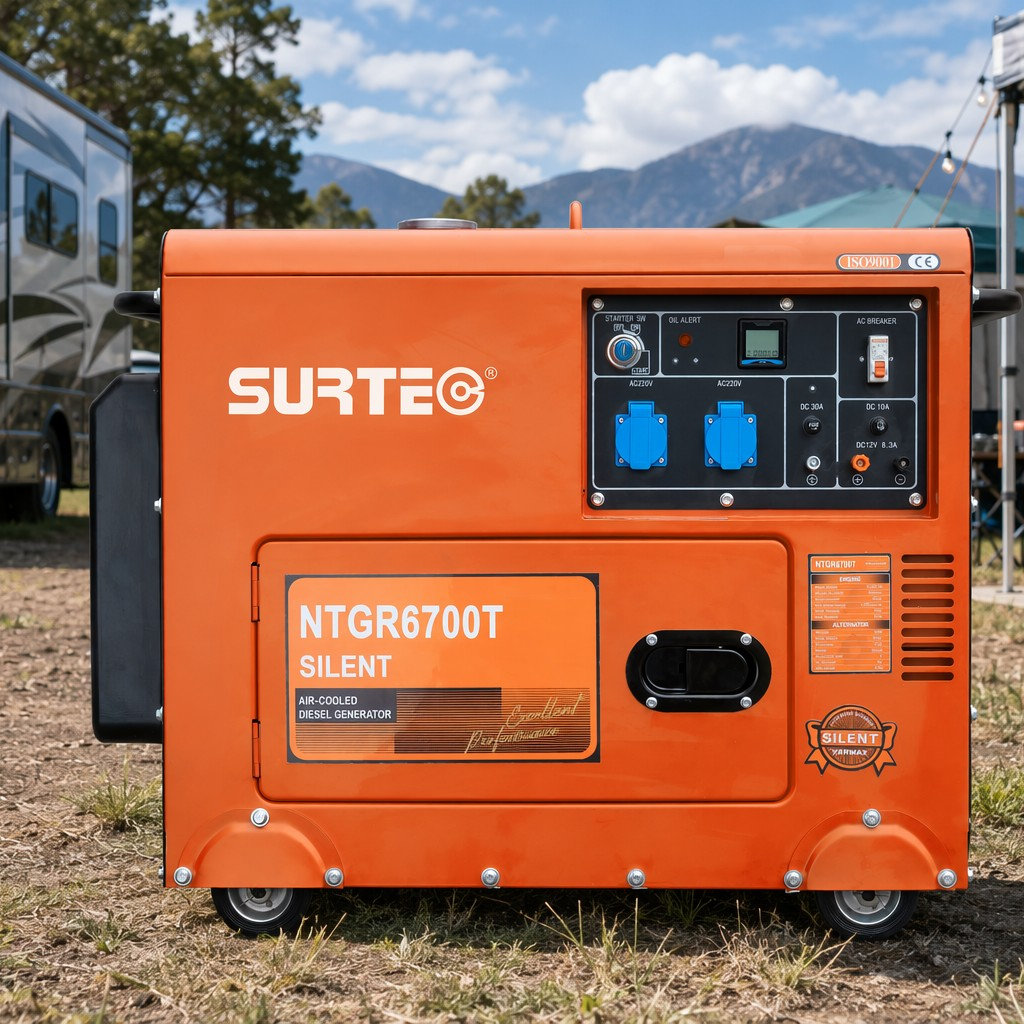

The SURTEC NTDGR6700T is a silent diesel generator for the places where power cannot come with noise: small commercial shops, mobile service operations, residential neighborhoods and regulated workplaces. Rated at 4.5/4.8kW at 50/60Hz with a 5.0/5.2kW maximum at 3000/3600rpm, single-phase 220V (or as requested) at unity power factor, it delivers working-class output while its enclosure holds noise to 72 dB(A) measured at 7 meters — quiet enough to run beside a storefront, inside a housing estate or at a night job without complaints.

The NTDE186FA engine — a single-cylinder, vertical, four-stroke, direct-injection, air-cooled diesel of 418cc with an 86x72mm bore and stroke — produces 5.7kW at 3000rpm or 6.3kW at 3600rpm, giving the alternator room to hold output steady through long shifts. A 42CrMo forged crankshaft and nitrided steel gears deliver excellent wear resistance through frequent load cycles, and the BOSCH-based direct-injection combustion system keeps fuel consumption economical at or below 280 g/kW·h. Electric starting is handled by a 12V 0.9kW starter motor fed from a 12V 30Ah battery, with a 12V 8.3A charging generator keeping it ready.

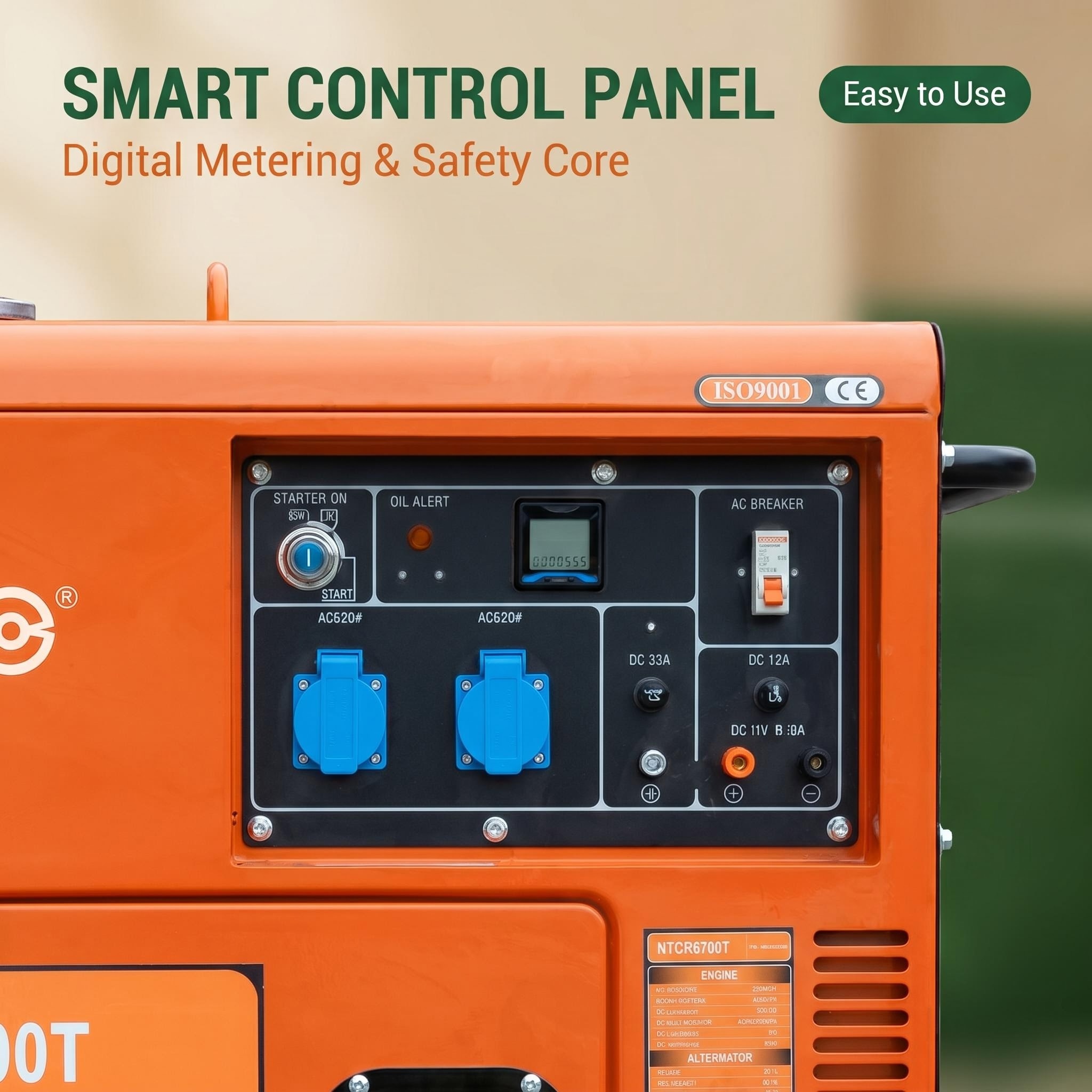

The copper-coil alternator is self-excited with constant-voltage AVR regulation, insulation grade F, 2-pole design — balanced, clean voltage suited to small machinery, tools and sensitive electrical equipment. Two receptacles plus a DC 12V connection-pole output cover the usual spread of loads, and the user-friendly control panel carries a digital meter with built-in safeguards: short-circuit protection and low-oil shutdown. From its 15L fuel tank the unit runs up to 7.5 hours continuously — a full day of service calls on one fill.

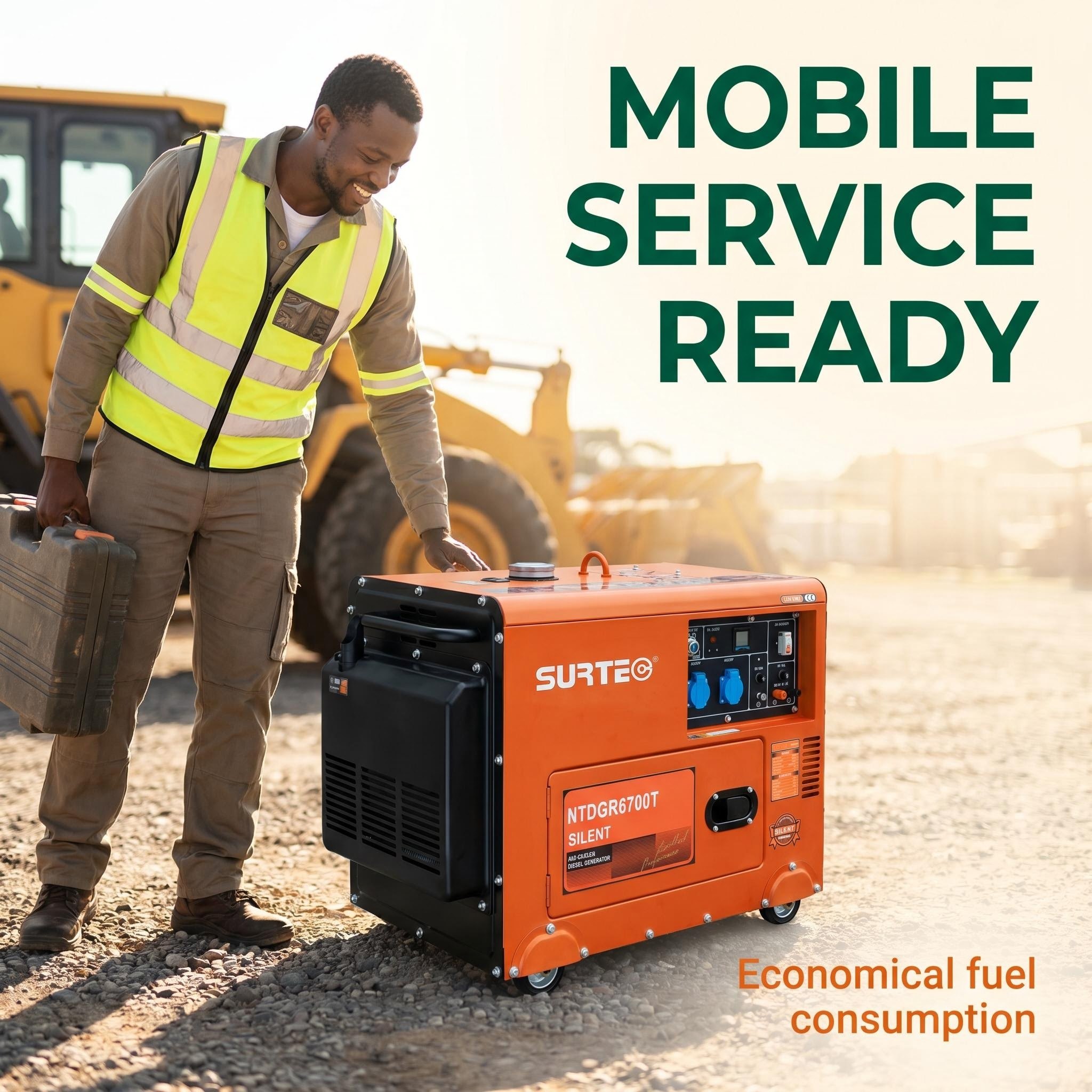

The silent enclosure is the machine's signature — for a diesel engine generator, that silence changes where it can work. At 945x555x700mm and 150kg dry weight it stays transportable for mobile fleets, while the low-noise design opens markets that open-frame units simply cannot enter — urban service providers, clinics, guesthouses and noise-sensitive sites where a generator must work without being heard.

For equipment dealers, hardware retailers and distributors serving commercial shops, mobile fleets and backup power markets, the NTDGR6700T is a practical inventory choice with a story customers understand at once: real diesel power, genuinely quiet. Wholesale quantities, stable supply and competitive pricing come from the generator factory, backed by full spare parts support through authorized distributors and dealers. Across Latin America, Africa, Eastern Europe and Southeast Asia, portable generator suppliers adding a silent option to their range will find the NTDGR6700T answers a demand the rest of the lineup cannot.

Product Specifications

Rated frequency(Hz) 50   60
Rated output(kW) 4.5  4.8
Max. output(kW) 5.0   5.2
Rated voltage(V) 220V or as request
Rated currency(A) 20.4   21.8
Rated rotation speed(rpm) 3000   3600
Phase NO. Single phase
Power factor(Cos Φ) 1
Insulation Grade F
Pole number 2
Excitation mode Self-excitation & constant voltage (AVR)
Panel Type General Panel
Receptacle Two receptacles
DC12V output Connection pole output
Overall dimension(L×W×H)(mm) 945*555*700
Dry weight(kgs) 150
Working assorting weight(kgs) 160
Noise level（7m）[d B(A)] 72
Structure type Silent type
Engine Model NTDE186FA
Engine Type Single cylinder, vertical, four-stroke, direct injection, air-cooled
Cylinder NO.-bore×stroke(mm) 1-86*72
Displacement(cc) 418
Rated power[kW(r/min)] 5.7/3000 6.3/3600
Compression ratio 19:01
Lubrication system Pressure splashed
Starting system Electric
Fuel type diesel0＃（summer）-10＃（winter）-35＃（chillness）diesel
Lube oil brand CD grade or SAE10W-30, 15W-40
Lube capacity(L) 1.65
Starting motor capacity(V-kW) 12V   0.9kW
Charging generator capacity(V-A) 12V   8.3A
Battery capacity(v-Ah) 12V   30Ah
Fuel consumption(glkw*h) ≤280
Fuel tank capacity(L) 15
Continuous running time(hr) 7.5
