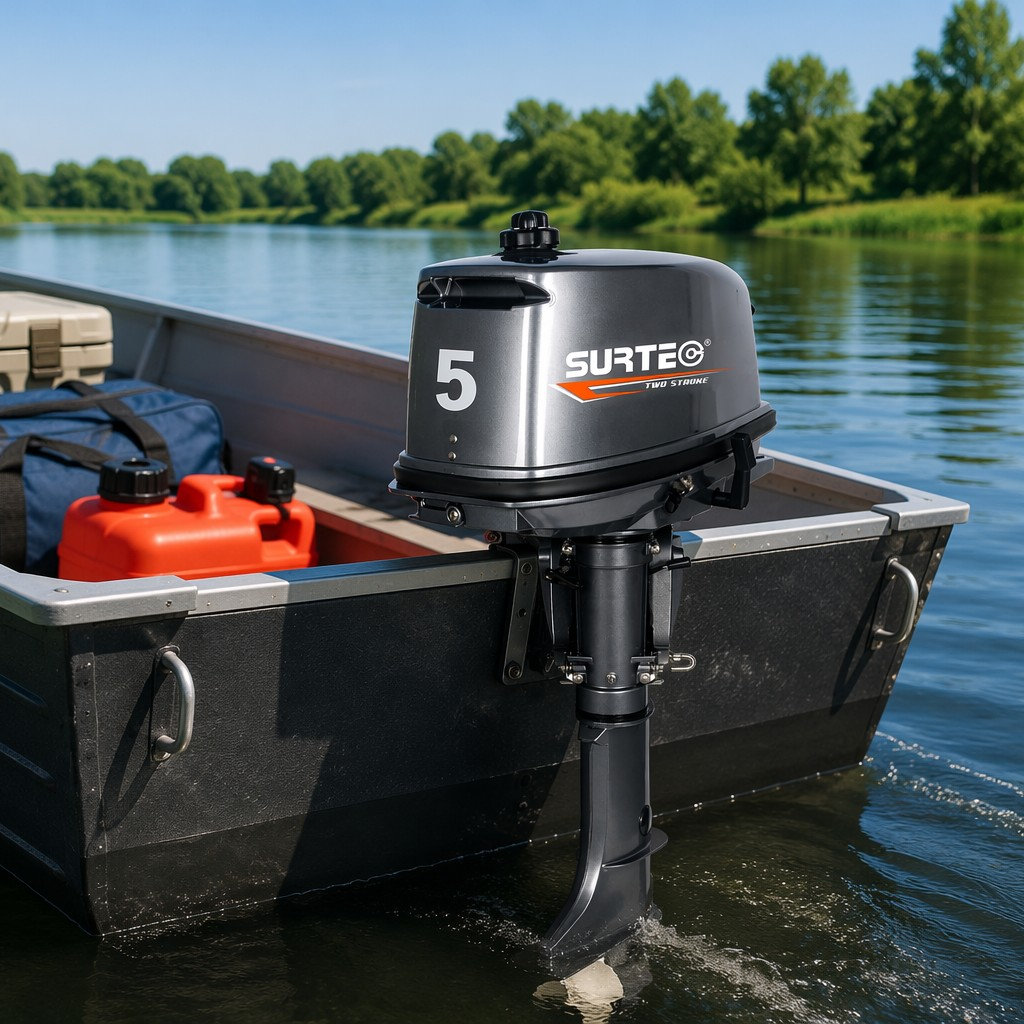

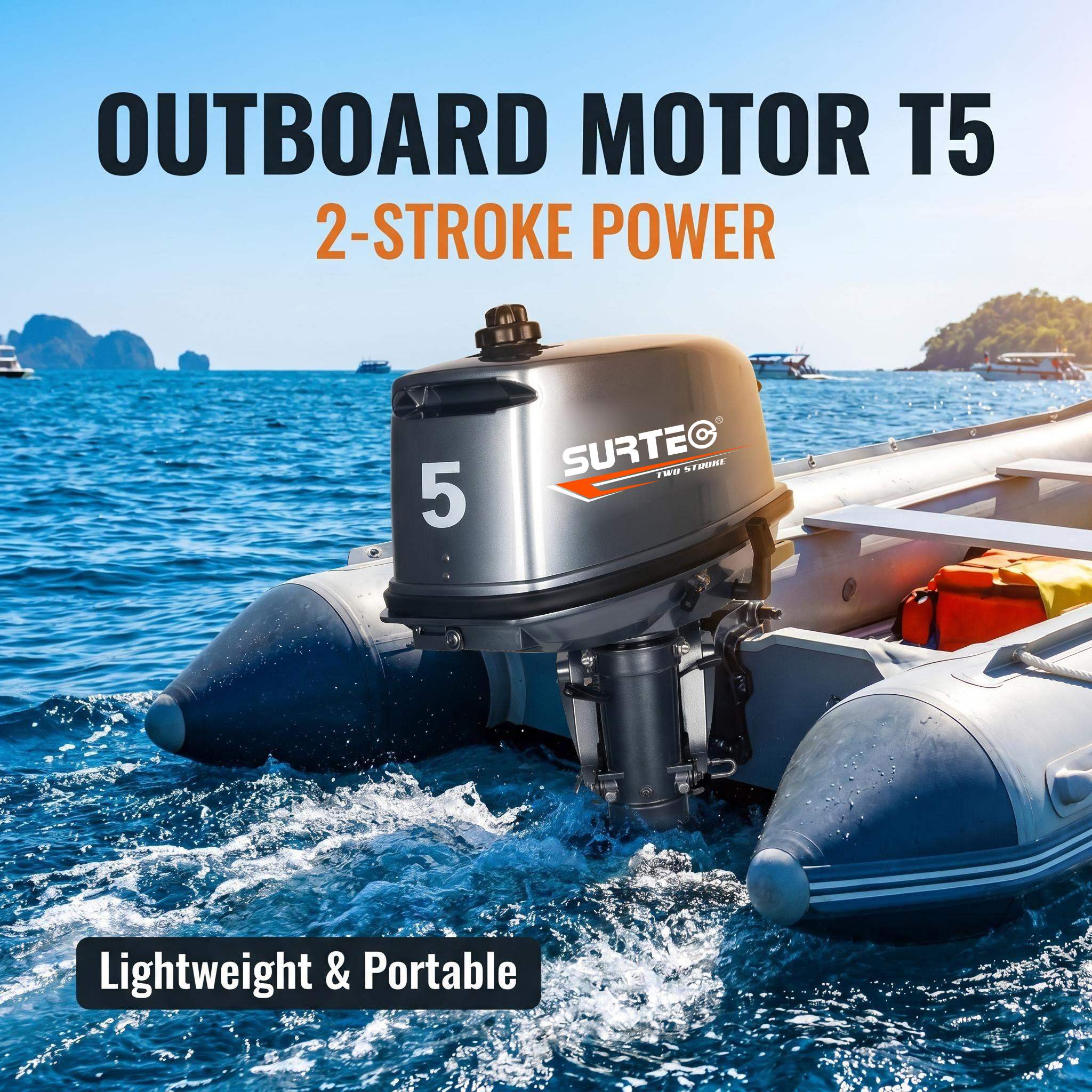

SURTEC Outboard Motor T5

Lightweight Powerhouse for Effortless Marine Adventures

Highlights:

  • Ultra-Lightweight & Compact: Easy to carry and store.
  • Simple, Reliable Engine: Trouble-free starts every time.
  • Low Maintenance Costs: Saves you time and money.
  • Marine-Grade Durability: Corrosive-resistant for long life.
  • Powerful, Stable Performance: Smooth and dependable on water.
  • Perfect for Small Boats: Ideal for inflatables under 3m.
Request A Quote
Certification 1
Certification 2
Certification 3
Certification 4
Certification 5
Certification 6
Certification 7

The SURTEC T5 is the entry point to our marine range — a compact 5HP outboard built on a 102cc engine that delivers 3.64kW at 5000rpm. In a market crowded with small outboard motors for sale, the T5 earns its place through a single-minded design brief: give working crews dependable propulsion they can carry, mount, and trust, day after day, in the world's most demanding waterways.

Portability is the T5's signature. At just 20kg dry weight, this lightweight outboard motor can be lifted, transported, and transom-mounted by a single crew member — no hoist, no dockside handling equipment, no waiting for a second pair of hands. Two factory configurations cover every hull: the T5BMS with a 15-inch transom height and the T5BML long shaft outboard motor option with a 20-inch transom, matching inflatables, dinghies, and utility skiffs alike. For fleets that deploy boats from vehicle roofs, riverbanks, or remote landing points, that flexibility is not a convenience — it is daily operational reality.

On the water, performance is smooth and predictable across the 4500-5500rpm working range. Forward-neutral-reverse gear selection through the 2.15:1 gearbox gives operators confident control around docks, nets, and tight moorings, while tiller-handle steering keeps command literally in the operator's hand. This is a tiller outboard motor stripped of unnecessary complexity: every control is placed where a working hand expects to find it.

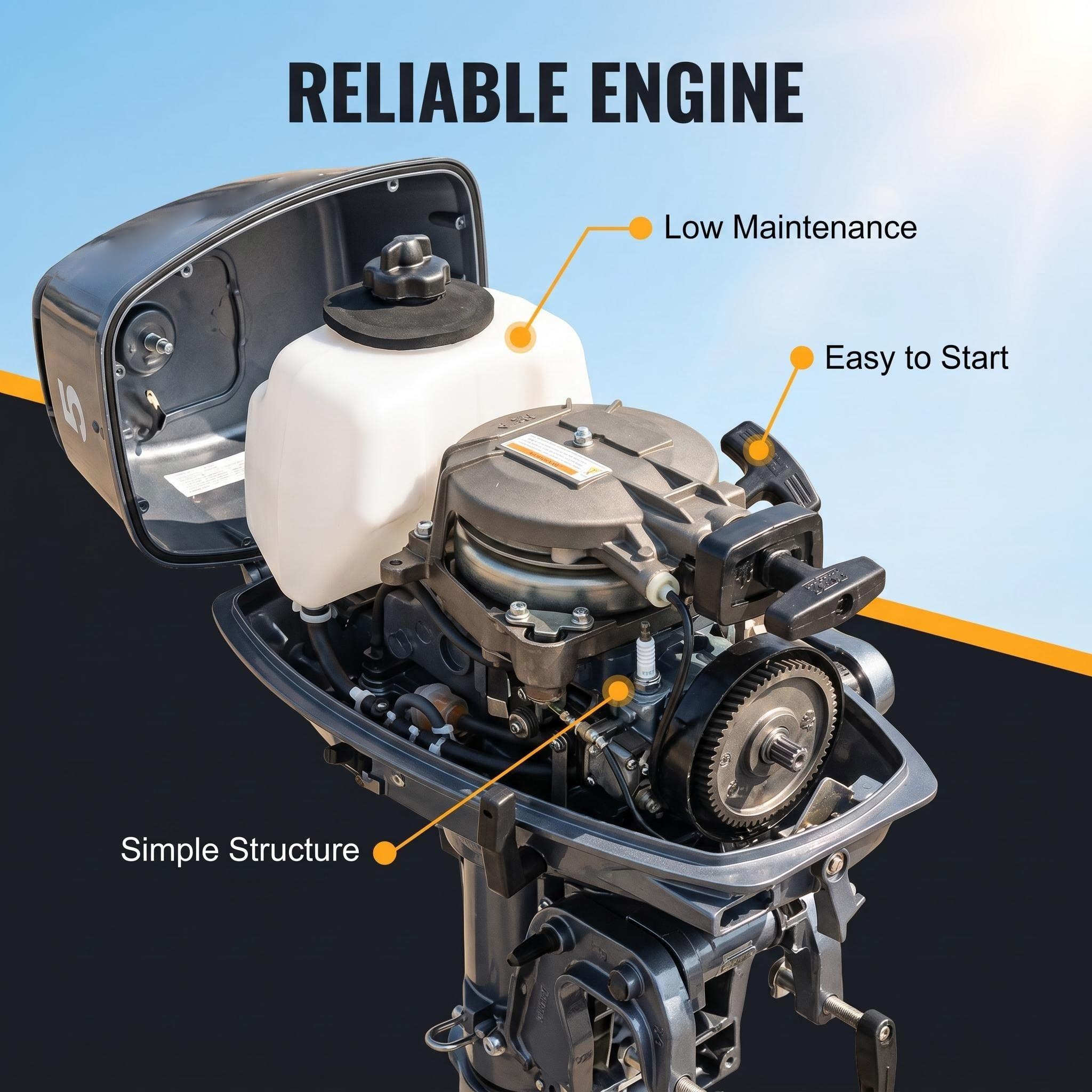

Running costs stay low by design. The CDI ignition system delivers trouble-free manual starts, the engine runs on a straightforward 50:1 fuel mixture, and the built-in 2.7L fuel tank feeds a maximum consumption of 2.6 litres per hour — predictable fuel budgeting for municipal, fishery, and aquaculture fleets that log engine hours by the season. Maintenance intervals are long, procedures are simple, and parts follow a standardized mechanism that any competent workshop can service.

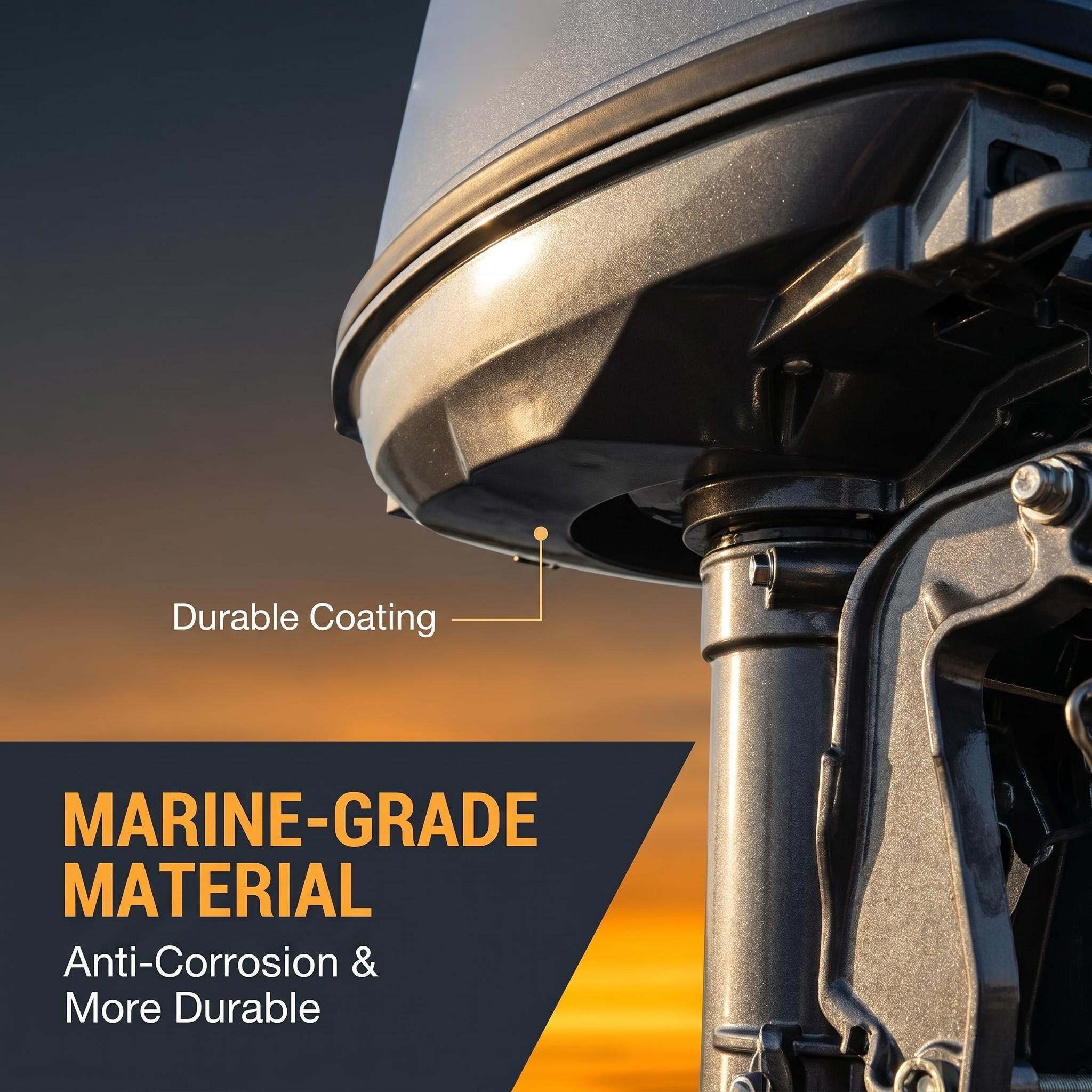

Durability matches the demands of saltwater, brackish, and polluted inland waterways. Marine-grade, corrosion-resistant materials protect the powerhead, drive, and fasteners against the environments where commercial boats actually work, extending service life and protecting the buyer's investment.

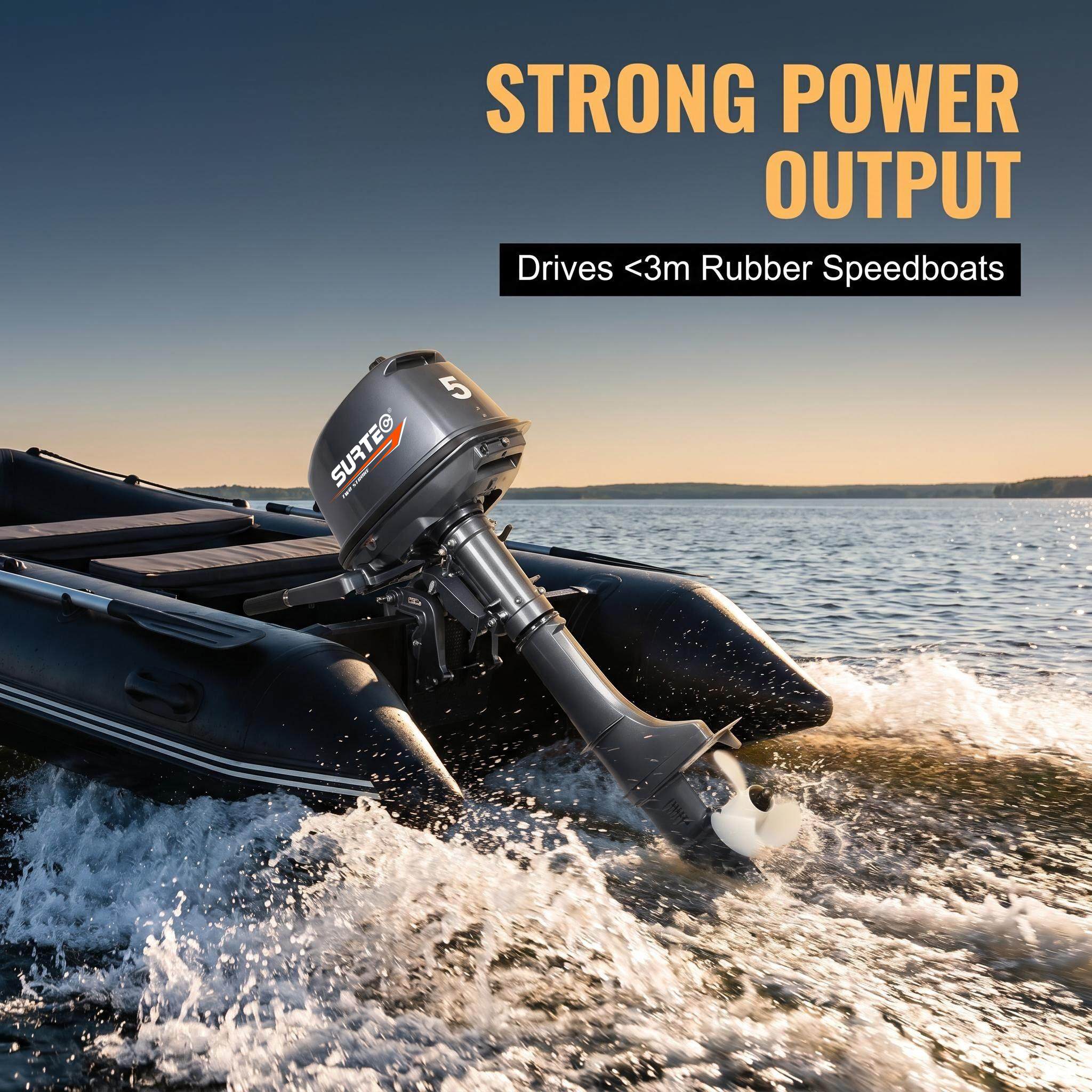

As an inflatable boat outboard for craft under 3 meters, the T5 excels — but its reach extends to aquaculture support boats, waterway-cleaning operations, and small-scale commercial shipping across Southeast Asia, Africa, and Latin America. For outboard motor dealers and marine wholesalers, it is a high-turnover, globally competitive line: universal demand, standardized parts, and a price point built for volume procurement. Partner with SURTEC, and stock the new outboard motor that works as hard as the fleets it powers.

Product Specifications

 Specs Options: T5BMS/T5BML
 Transom Height: 15in./20in.
 Dry Weight: 20Kg
 Max. RPM Range: 4500~5500r/min
 Max. Outpower: 3.64kW(5HP)@5000r/min
 Idling RPM range: 1000~1100 r/min
 Engine Type: L1
 Displacement: 102cc
 Bore X Stroke: 55.0×43 mm
 Ignition Timing: CDI
 Steering System: Tiller handle
 Starting System: Manual start
 Gear Shift: F-N-R
 Gear Ratio: 2.15
 Trim &Tilt: Manual
 Fuel Tank Capacity: Built-in 2.7L
 Max. Fuel Consumption: 2.6L/h
 Gear Oil Capacity: 100cc
Mix Ration: 50:01:00
Propeller: 3-6"or 7"in.

FAQ

Quick answers to help you learn more about our offerings, processes, and how we can support your project needs.

The T5 features a high-performance engine optimized for its category, delivering stable and efficient power for demanding tasks.

Yes, it is equipped with an easy-start system and ergonomic controls to ensure minimal effort and maximum comfort during operation.

The T5is ideal for a variety of tasks including public waterway cleaning works, aquaculture, and small-scale shipping sectors.

Certainly. We welcome sample orders for quality testing and evaluation before proceeding with bulk purchases.

Our standard production lead time is 31-45 days, depending on the order volume and specific customization requirements.
